8×5 Single Axle Box Trailer ATM 750KG With Jockey Wheel

SKU-SABTM85XT ATM-750KG
$1,979.00

Don't Pay $2,579.00

Save $600.00

Out Of Stock

Spring into savingsSpring into savings
Finance Options Available
8×5 Single Axle Box Trailer ATM 750KG With Jockey Wheel

Out of stock

$1,979.00
Cage*
Clear
$350.00
Ramp*
Clear
$350.00
Ladder Racks*
Clear
$300.00
Aluminum Toolbox*
Clear
$0.00
Canvas Cover*
Clear
$540.00
Spare wheel*
Clear
$130.00
Spare wheel bracket*
Clear
$50.00
Upgrade to 425mm High Sides*
Clear
$250.00
Mower Pad*
Clear
$380.00
Plug*
Clear
$0.00
Blue Slip*
Clear
$0.00

Out of stock

Calculate Shipping Cost

Get Finance

×

    8×5 Single Axle Box Trailer ATM 750KG With Jockey Wheel$1,979

    Enquiry Now

    ×

    Complete this enquire form to obtain additional information about our services or send personal complaint.

      8×5 Single Axle Box Trailer ATM 750KG With Jockey Wheel$1,979

      Description

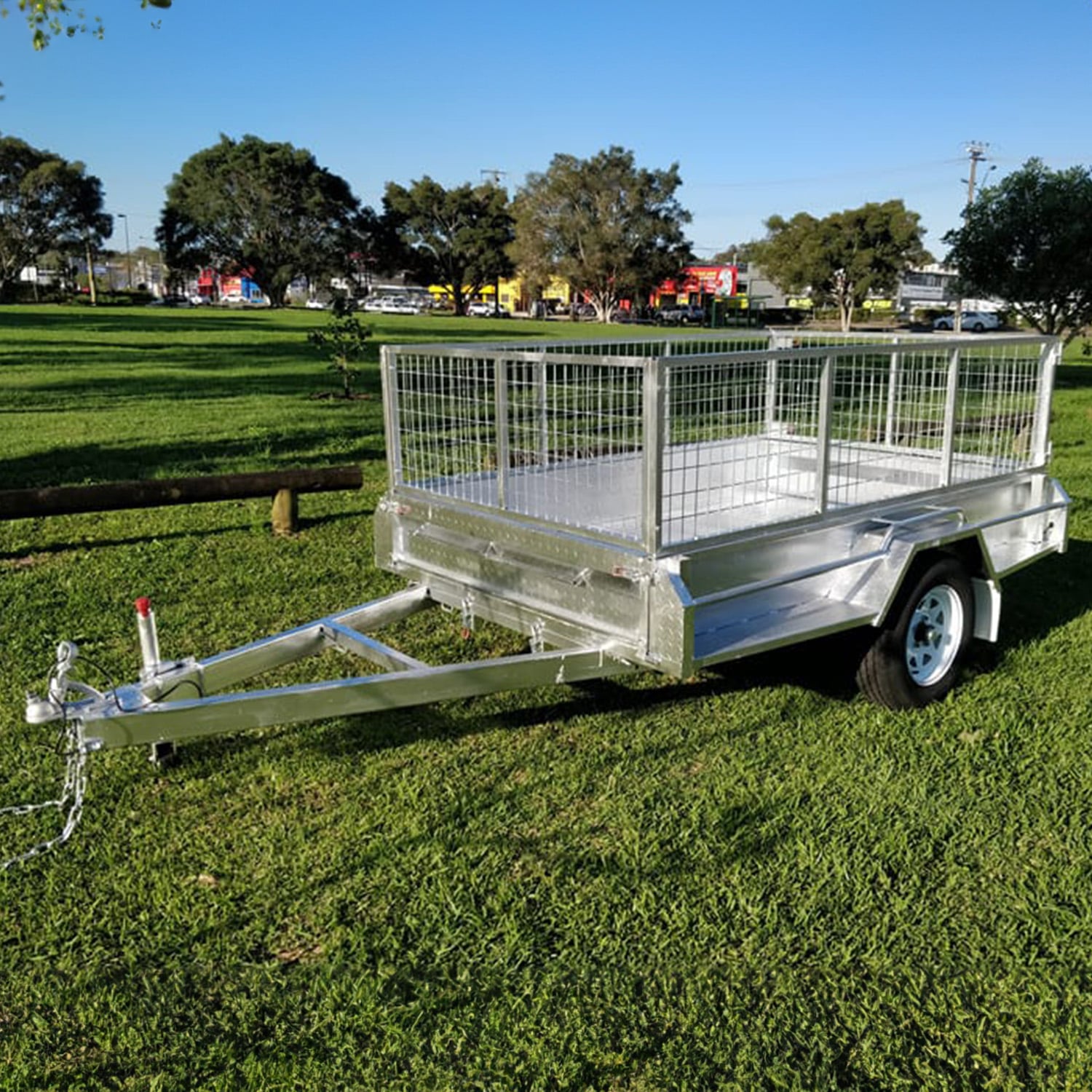

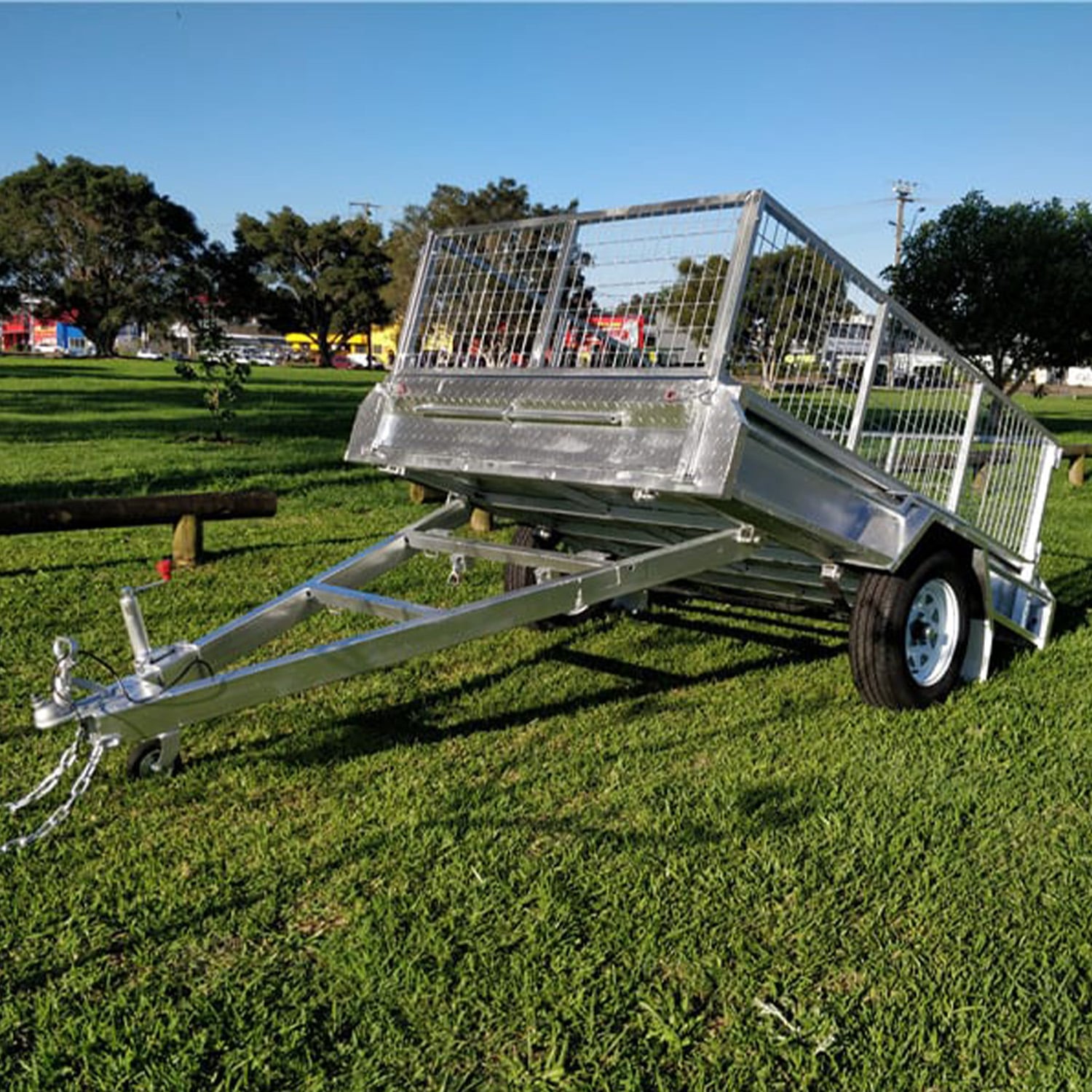

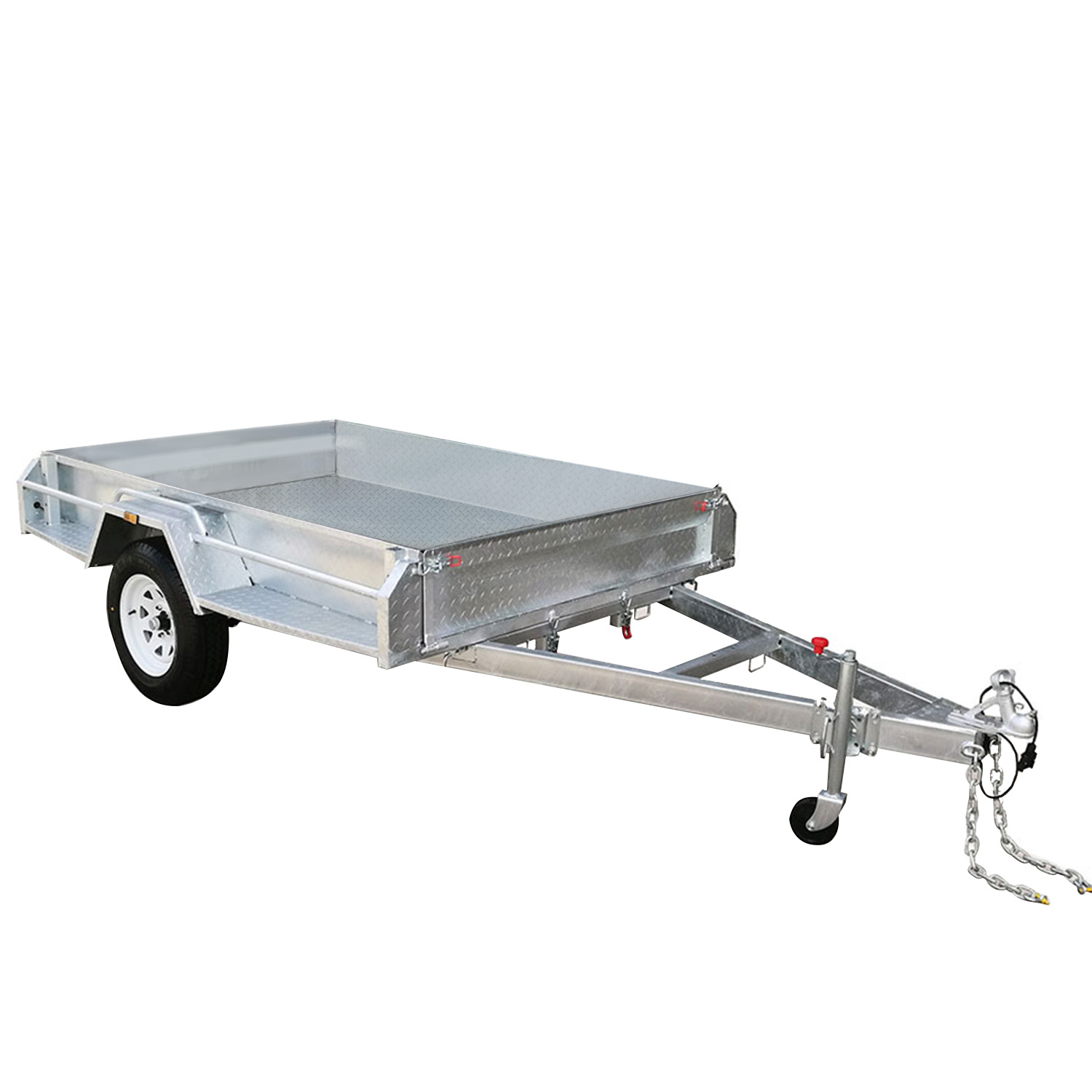

      8×5 Heavy Duty Single Axle Premium Box Trailer ATM 750KG With Jockey Wheel

      Xtreme Trailers, headquartered in Sydney, is a leading trailer provider serving various regions throughout Australia, ensuring widespread accessibility and reliable service. We specialize in offering premium quality box trailers that are Designed, Engineered, and Manufactured to meet The Australian Design Rules (ADRs) while withstanding harsh environmental conditions.

      Our 8×5 Single Axle Heavy Duty Premium Box Trailer with an ATM of 750KG is perfect for various transport needs, featuring upgraded 45mm 7 Leaf Eye To Eye springs for enhanced performance. The trailer is equipped with a fully welded chassis, hot-dipped galvanized steel, and a Checker Plate Floor. It has been rigorously tested and certified to meet RVSA requirements, providing strength for various tasks at affordable prices.

      Xtreme Trailers provides a wide range of sizes, customizable configurations, and accessories to suit your specific needs. Choose from our Single Axle ATM 750KG Box Trailer series, including sizes such as 7×4, 7×5, or 8×5. For heavy-duty requirements, our Premium Heavy Duty and Premium Tandem Box trailers can handle up to 3,200kg ATM, suitable for general trailer licenses and offering enhanced stability with an additional axle.

      Explore our diverse product range, which includes Tandem trailers, Boat & Jetski trailers, Cattle / Livestock crate trailers, Hydraulic tipper trailers, Flat Top trailers, Car trailers, Tradesman trailers, ATV Trailers, Plant trailers, and accessories. Xtreme Trailers provides top-quality options to meet your specialized trailer needs across Australia.

      Delivery Locations: Sydney, Melbourne, Brisbane, Adelaide, Perth, Canberra, Newcastle, Wollongong, Port Macquarie, Coffs Harbour, Dubbo, Gold Coast, Sunshine Coast, Geelong, Ballarat.

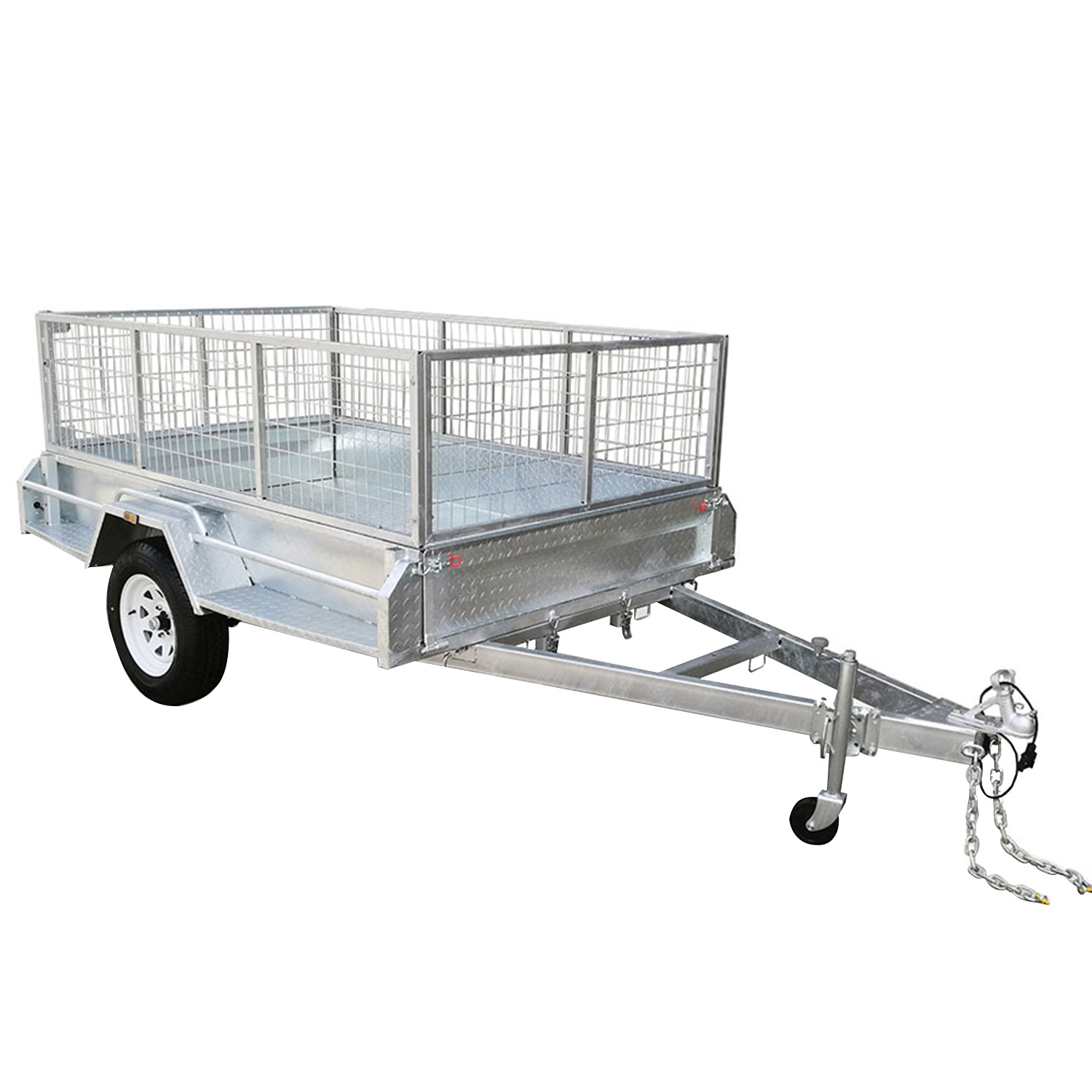

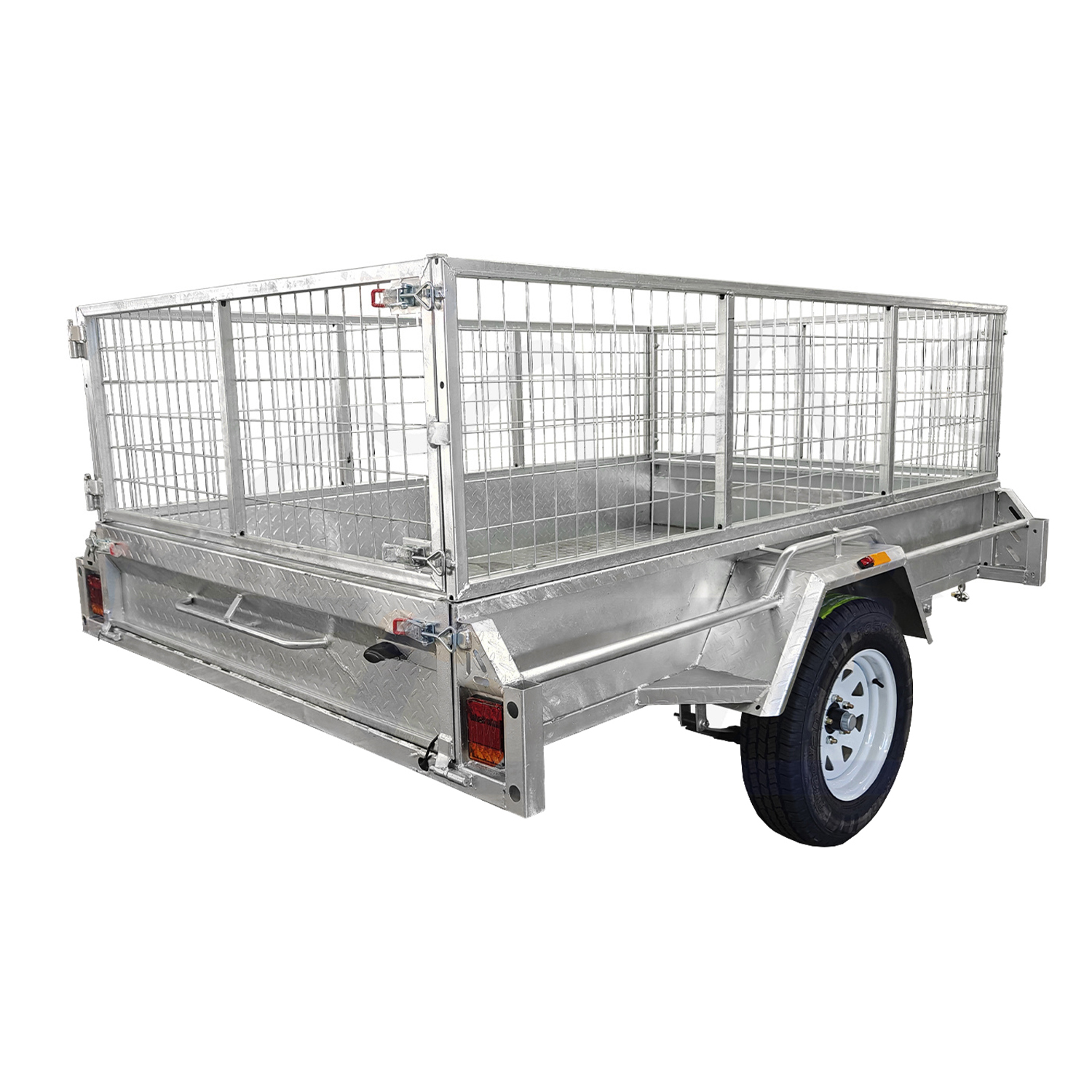

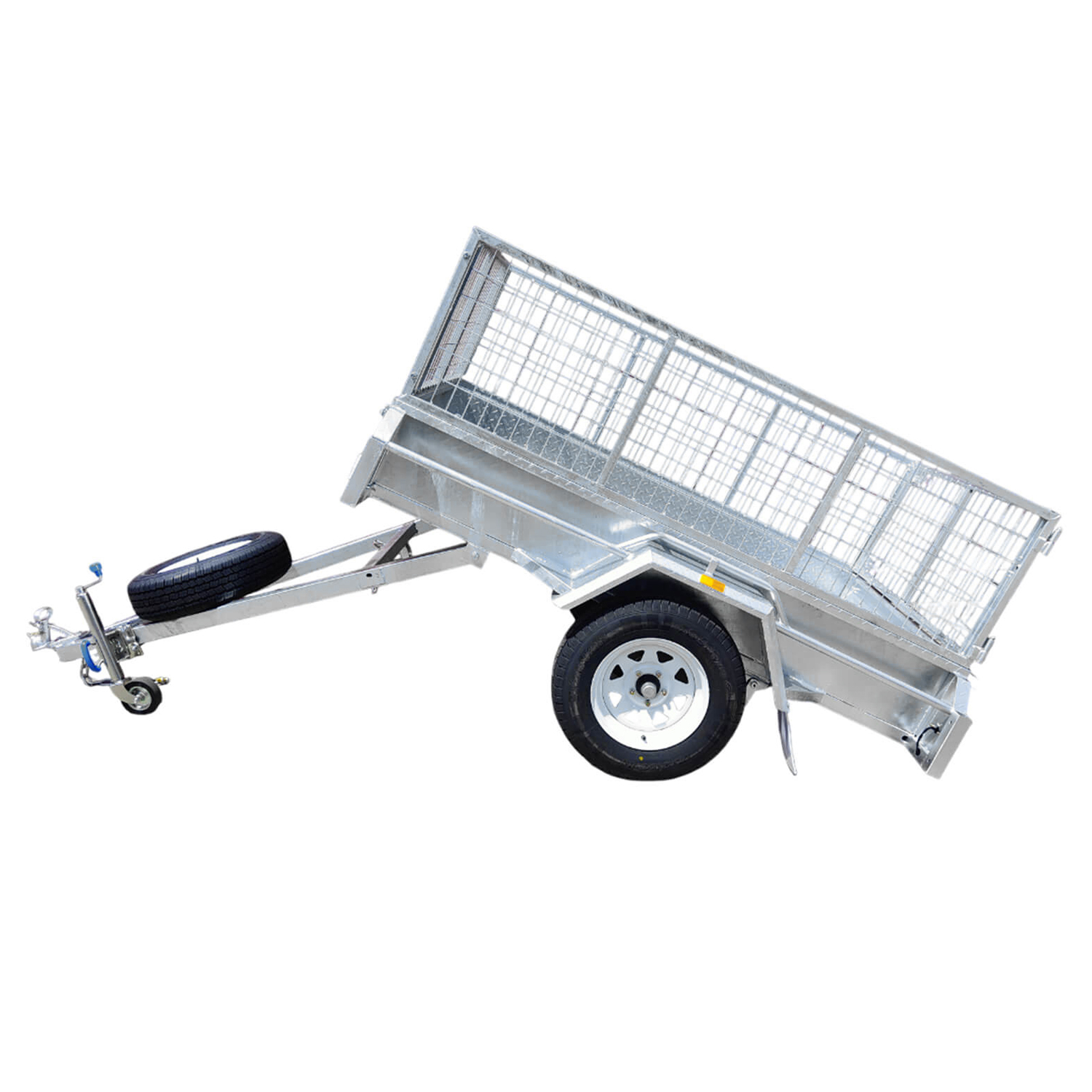

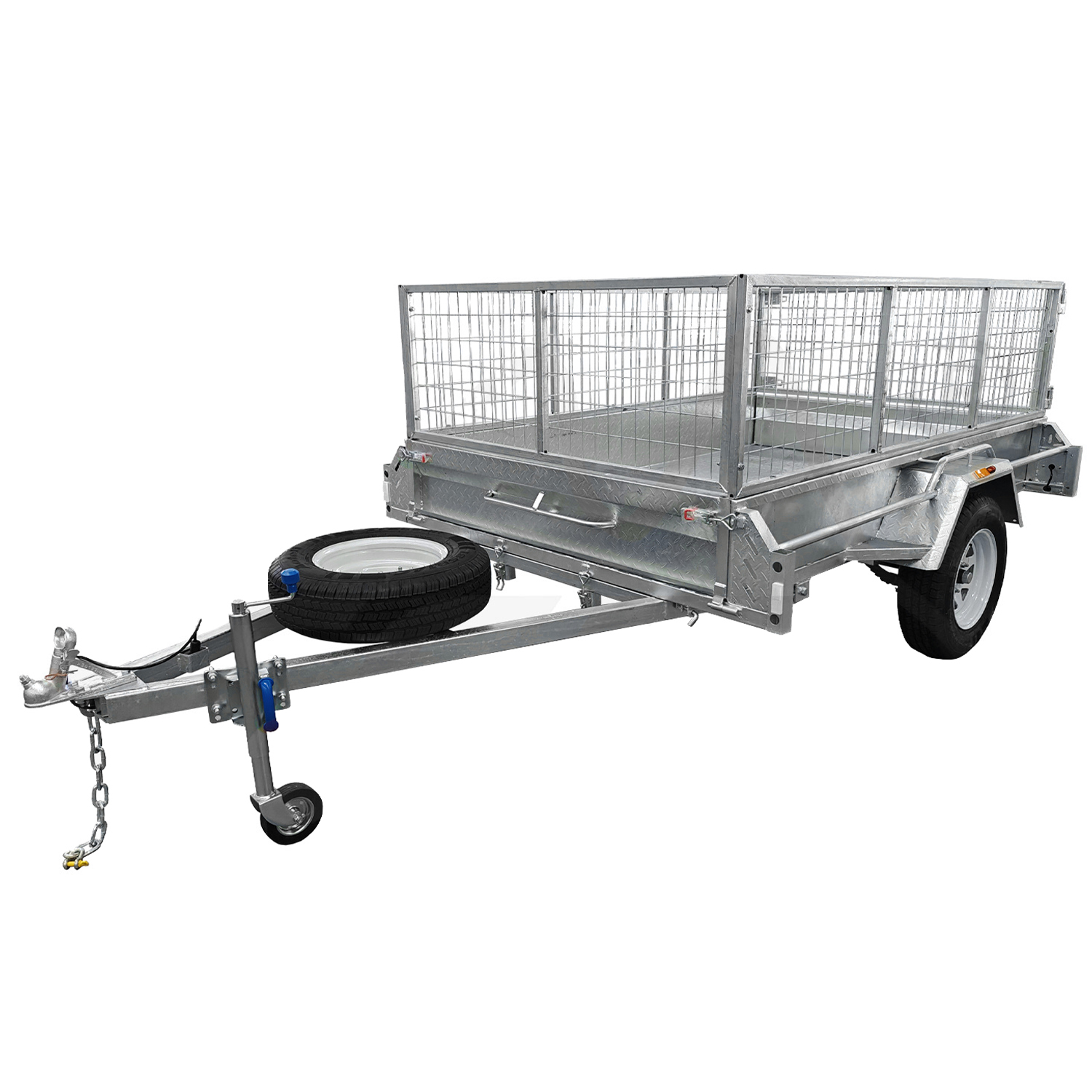

      NOTE: Cage displayed in images is for illustration purposes only.

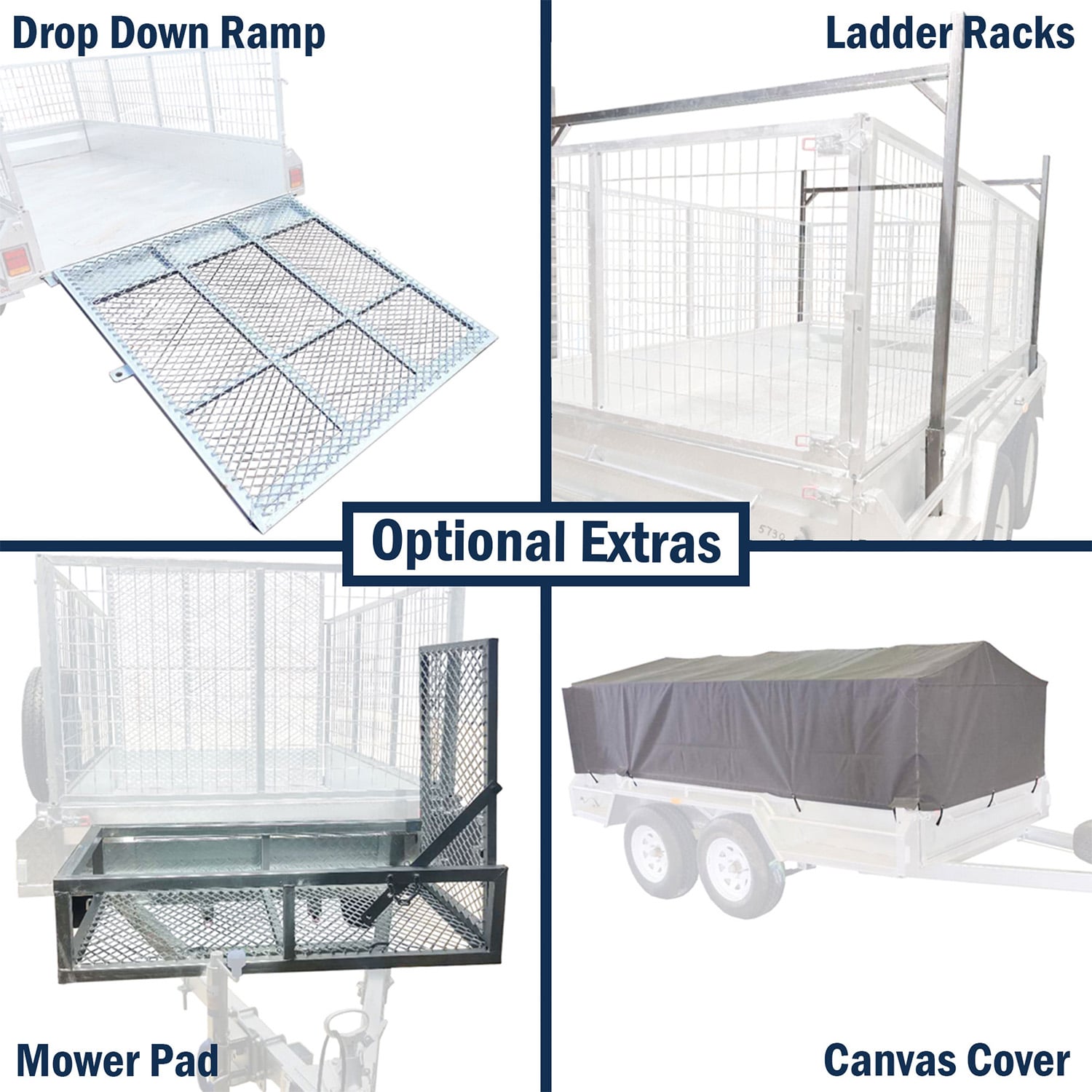

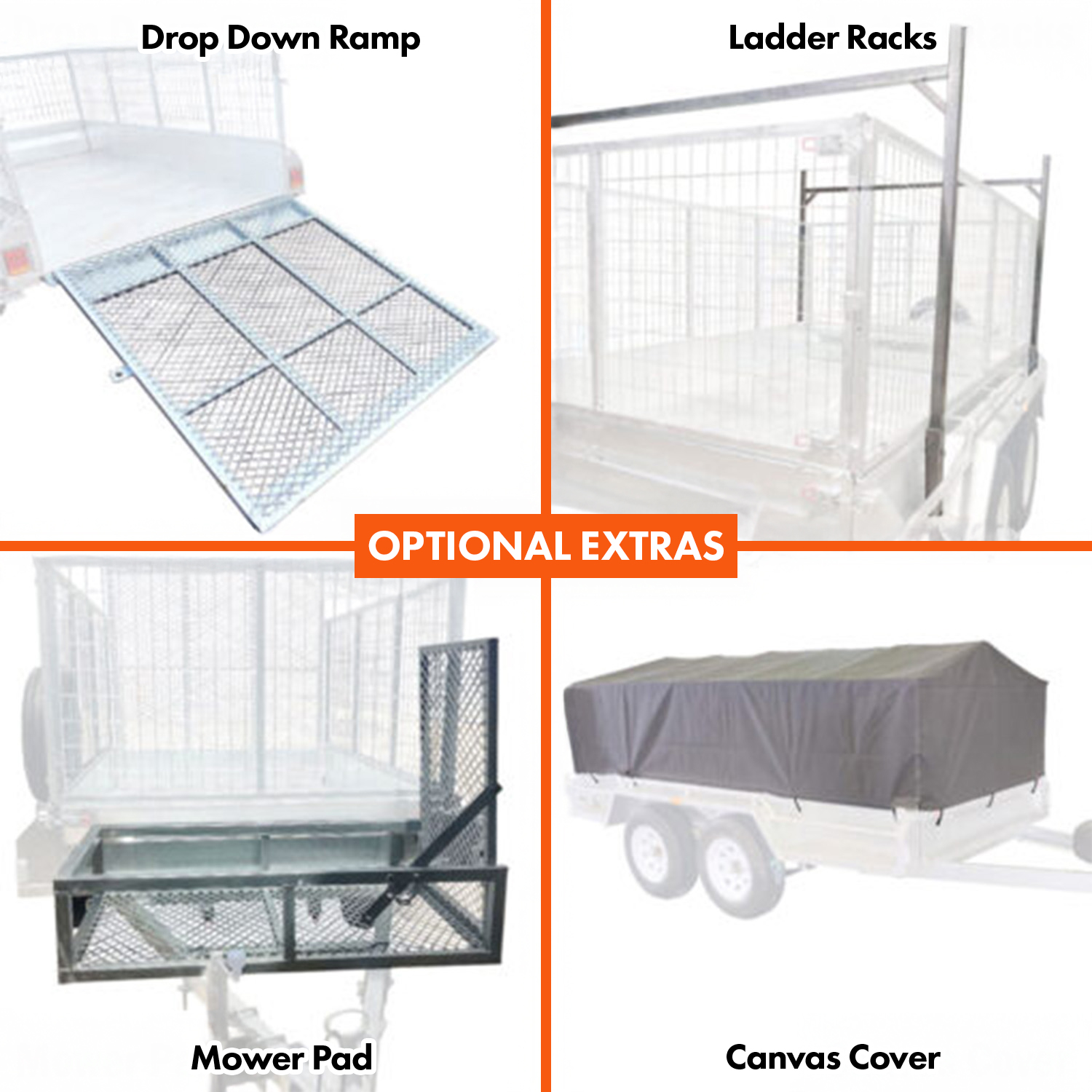

      Optional Extras

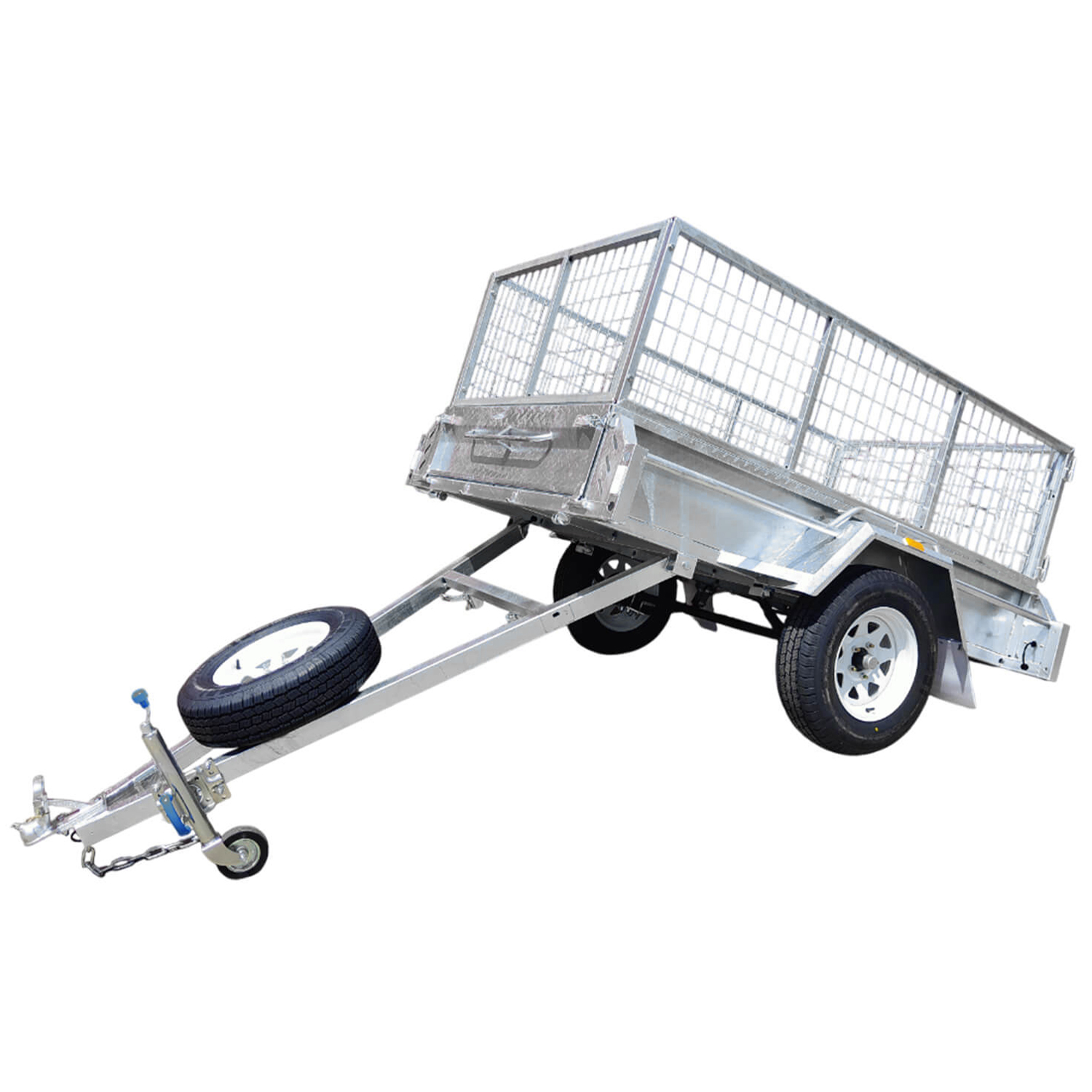

      • Spare Wheel
      • Mounting Spare Wheel Holder
      • Removable 600mm/ 900mm Cage
      • Heavy Duty Mesh Ramp Door
      • Canvas Cover For 600mm Or 900mm Cage
      • Ladder Racks For 600mm Or 900mm Cage
      • Tool Box
      • Mower Pad

      Warranty

      The company guarantees all its distributed goods against defective parts or workmanship with the following warranty provisions:

      • 5-Year Structural Warranty on all Brand-New Trailers: This warranty excludes coverage for surface rust, mistreatment, damage, or misuse.
      • 1-Year Warranty on Leaf Springs, Lights, Wiring, Jockey Wheel, and All Other Parts.
      • Warranty Exclusion for Second-hand or Used Trailers or Goods.

      Specifications

      • Model Number : SABTM85
      • ATM : 750kg
      • Tare : 376kg(Exclude cage)
      • Capacity : 374kg

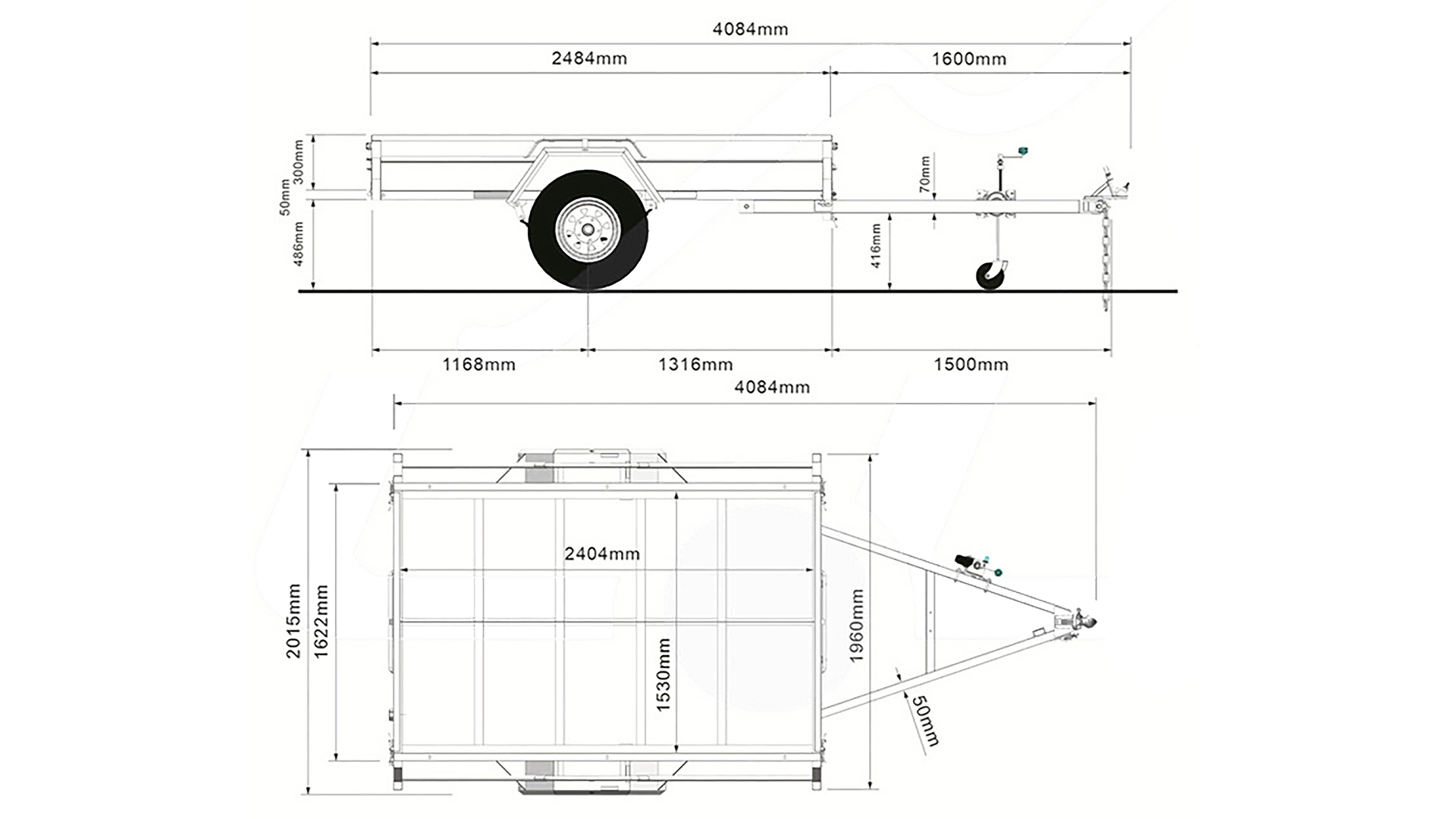

      • Internal Trailer Size : 2400mm x 1530mm x 300mm
      • Side : 300mm High, Fully Welded
      • Drawbar : 1600mm, 100mmx50mm RHS
      • Hot Dipped Galvanised
      • Fully Welded Body & Chassis

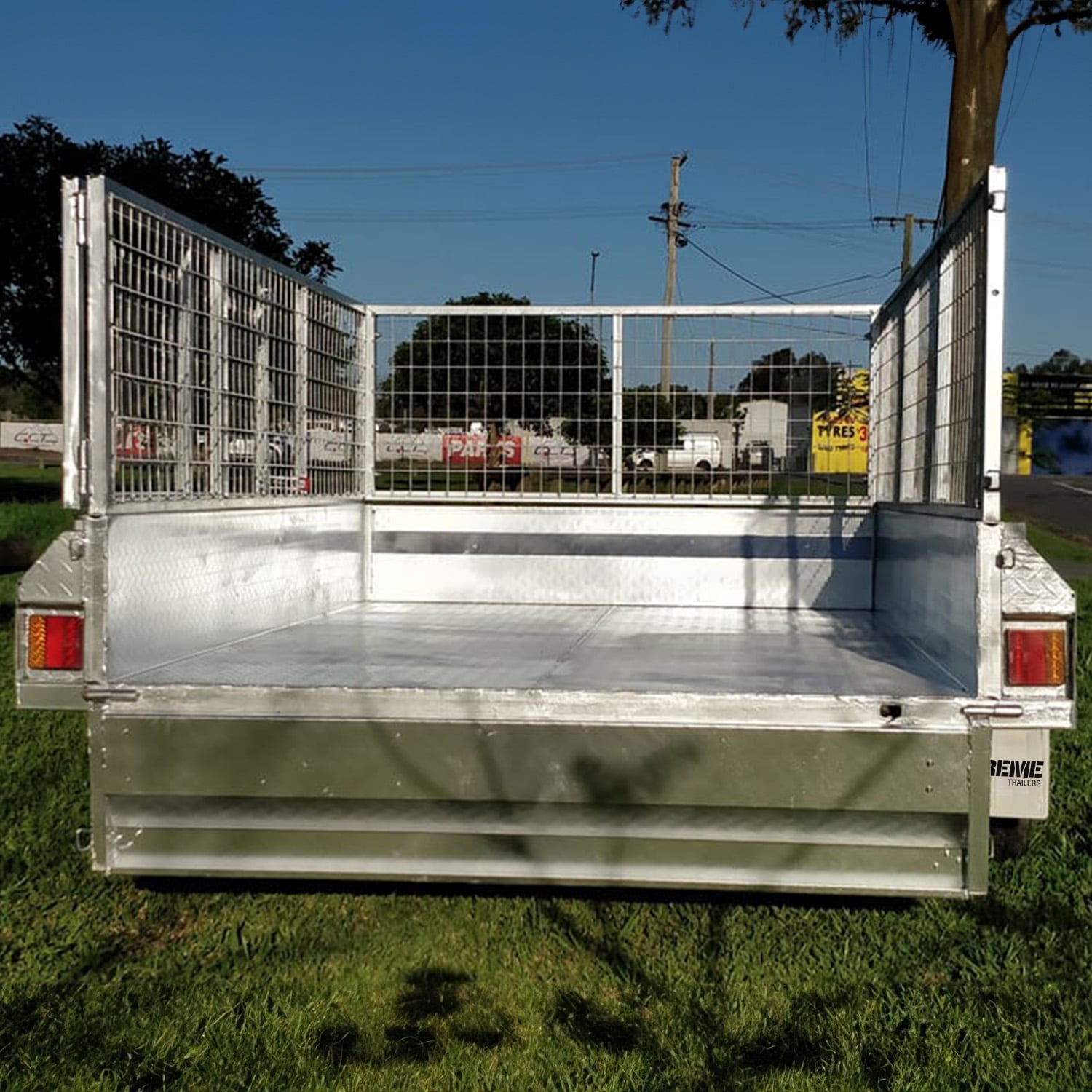

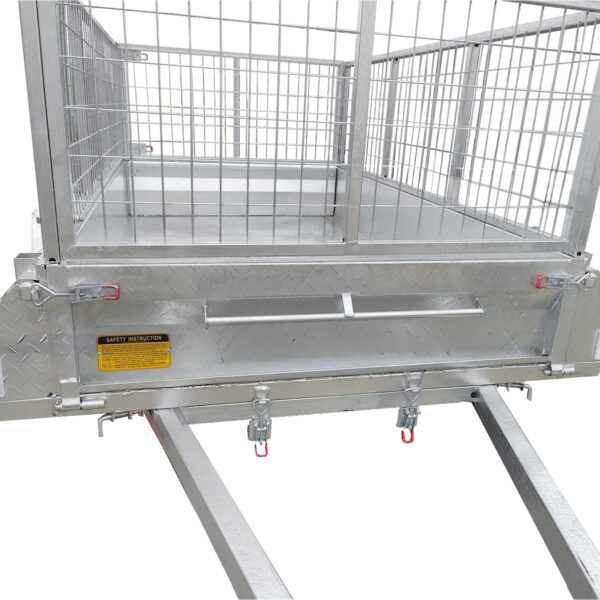

      • Removable Front and Rear Drop Down Gates
      • Welded Ladder Racks Holders
      • 6 Locking Points On Drawbar
      • Flooring : Checker Plate Floor
      • Tie Down Rails All Around

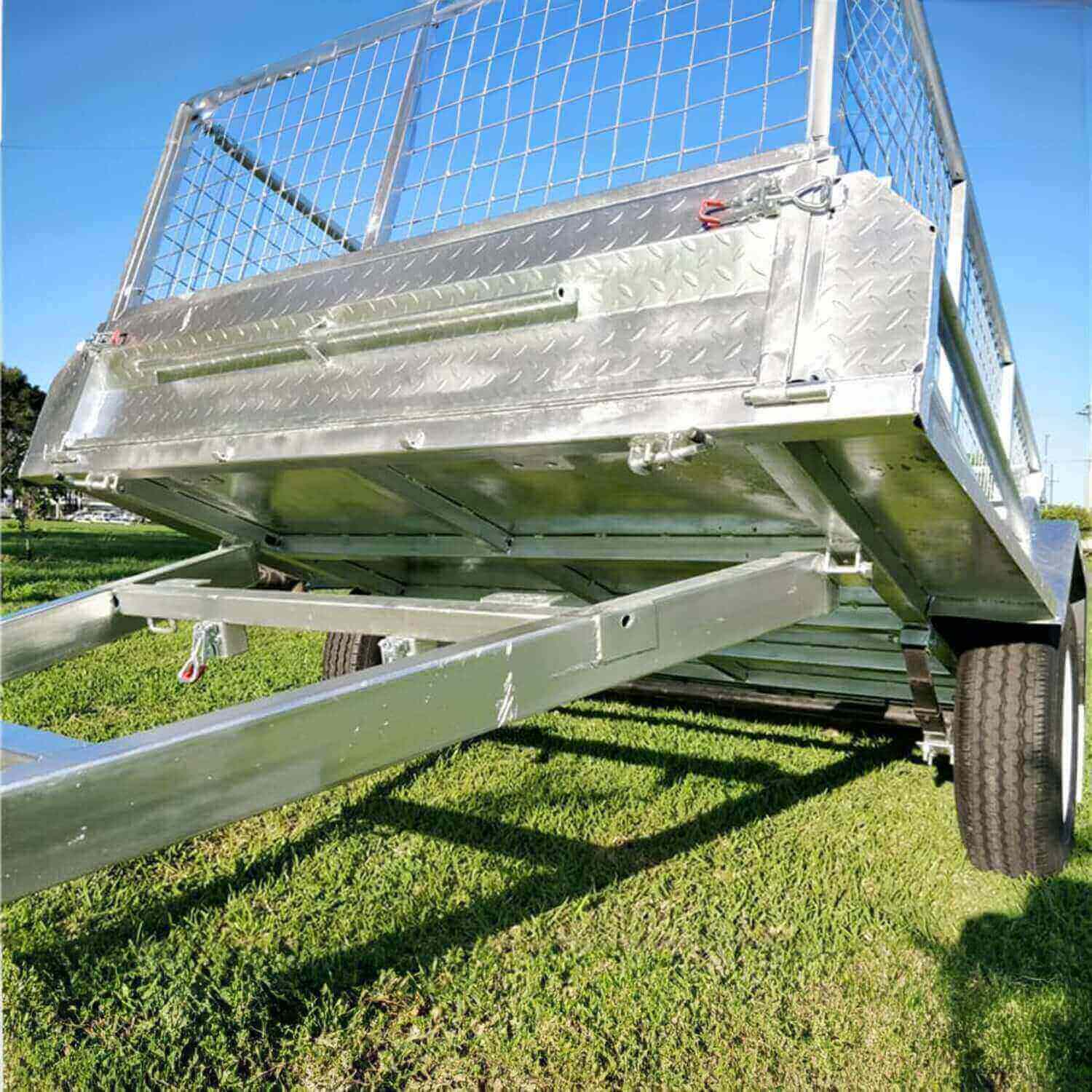

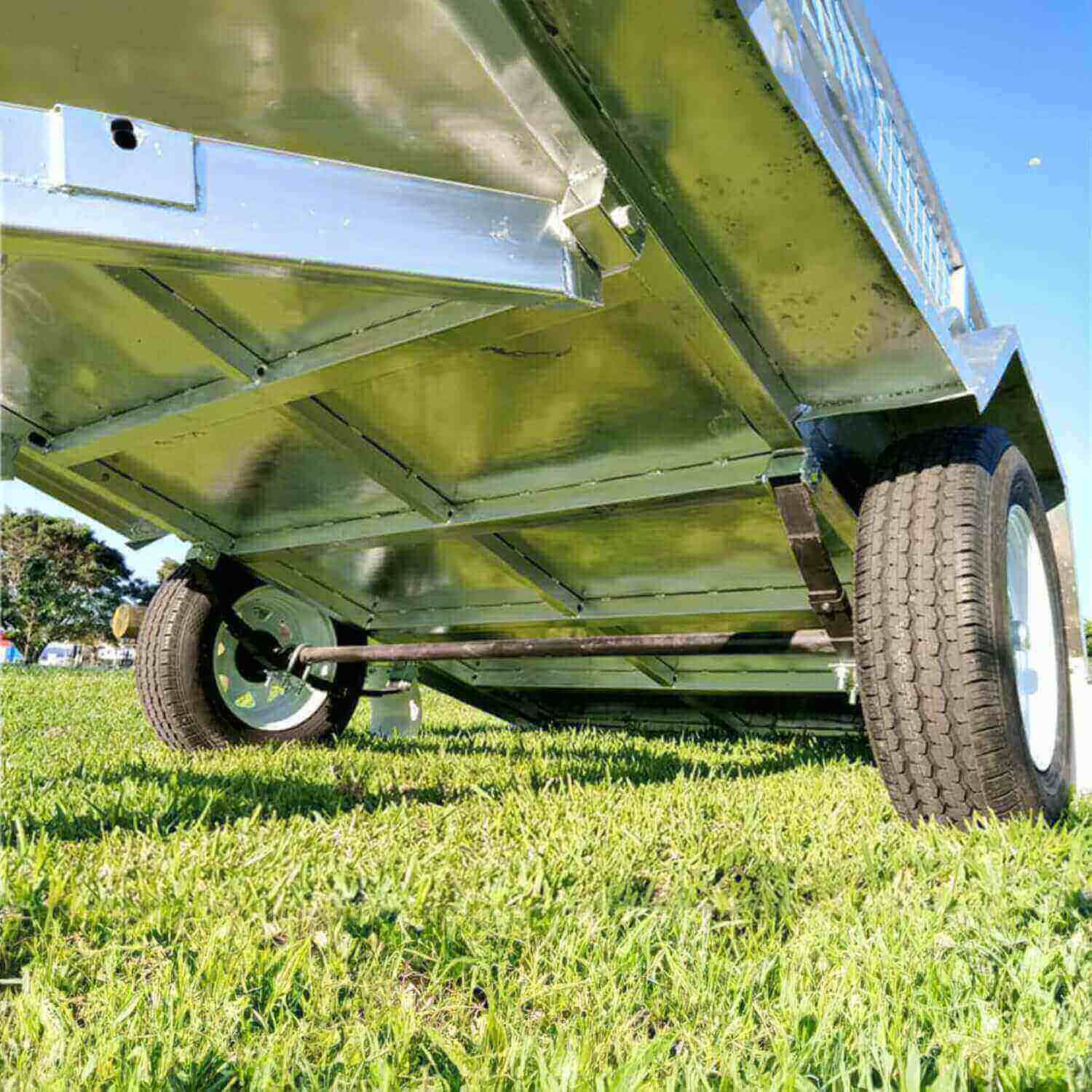

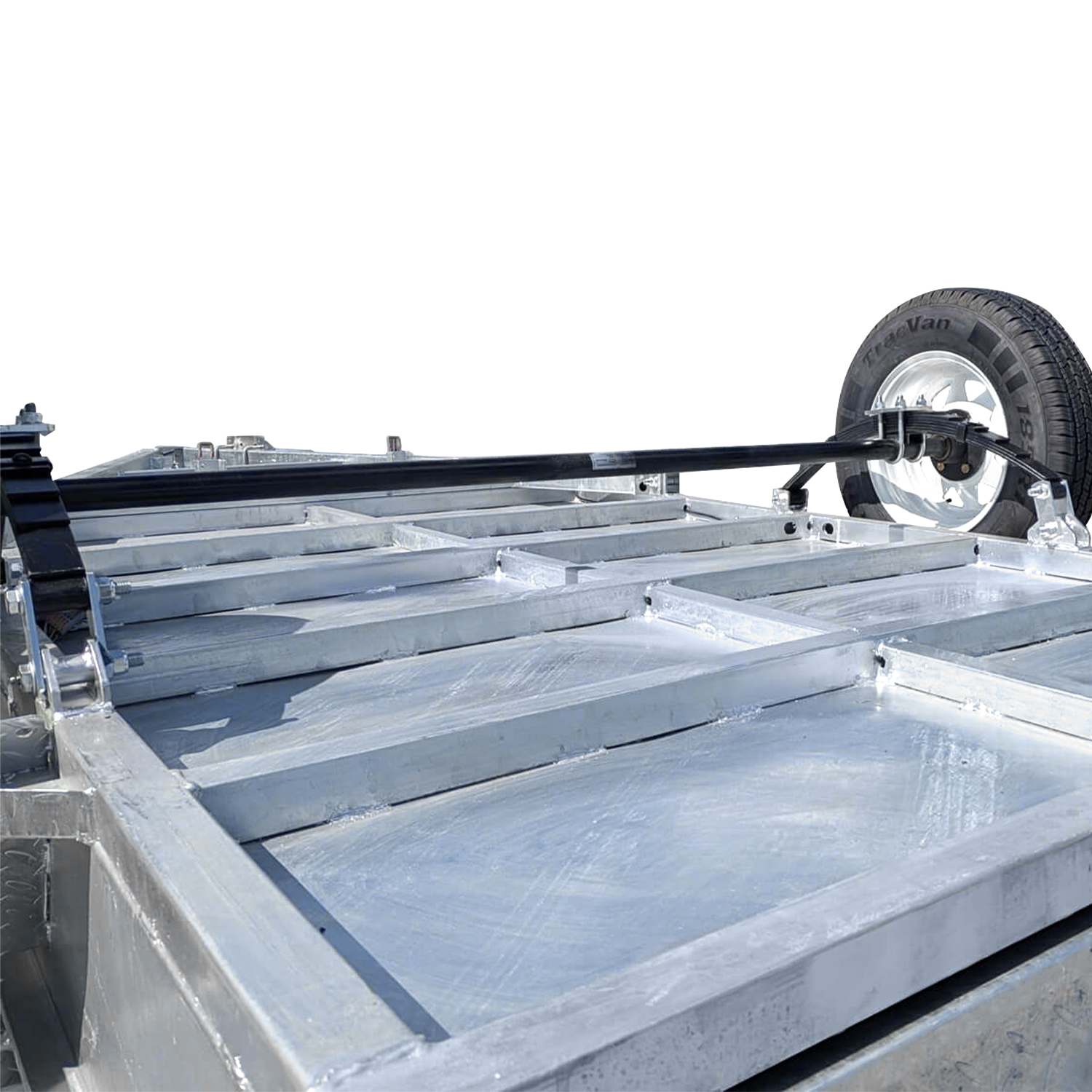

      • Support : Better Structure Support 50mm×50mm SHS Support Beams From Left To Right 40mm×40mm SHS Support Beams From Front To Back

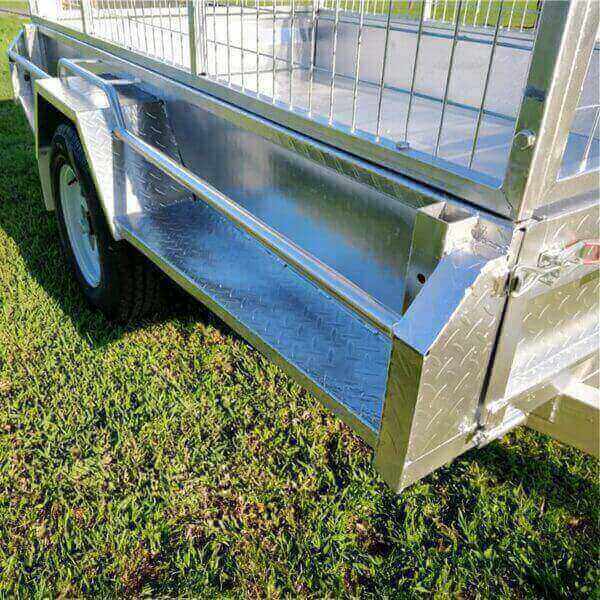

      • Step-up Platforms On Both Sides
      • Axle : Single Axle, 40mm Round Solid Axle
      • Brake : None

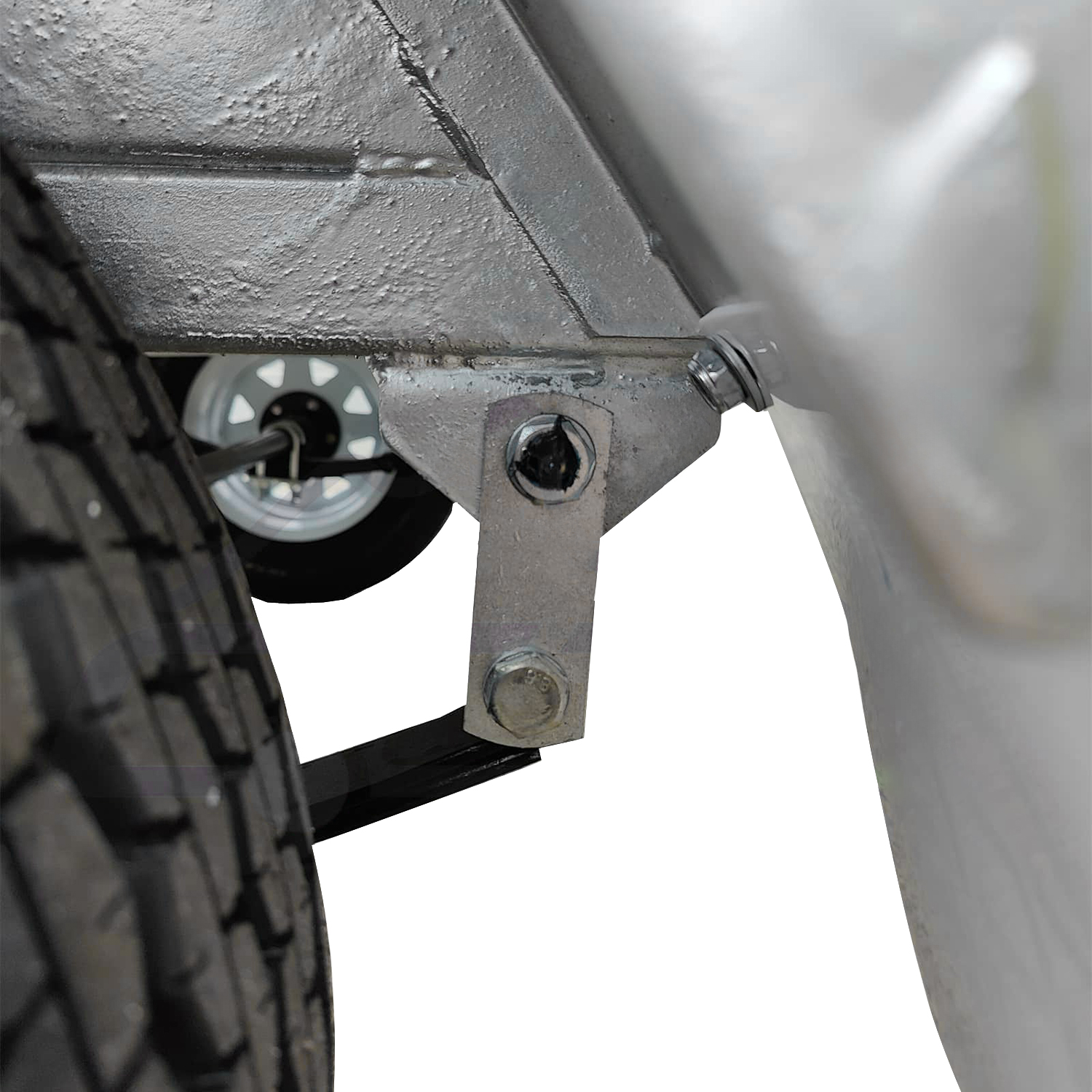

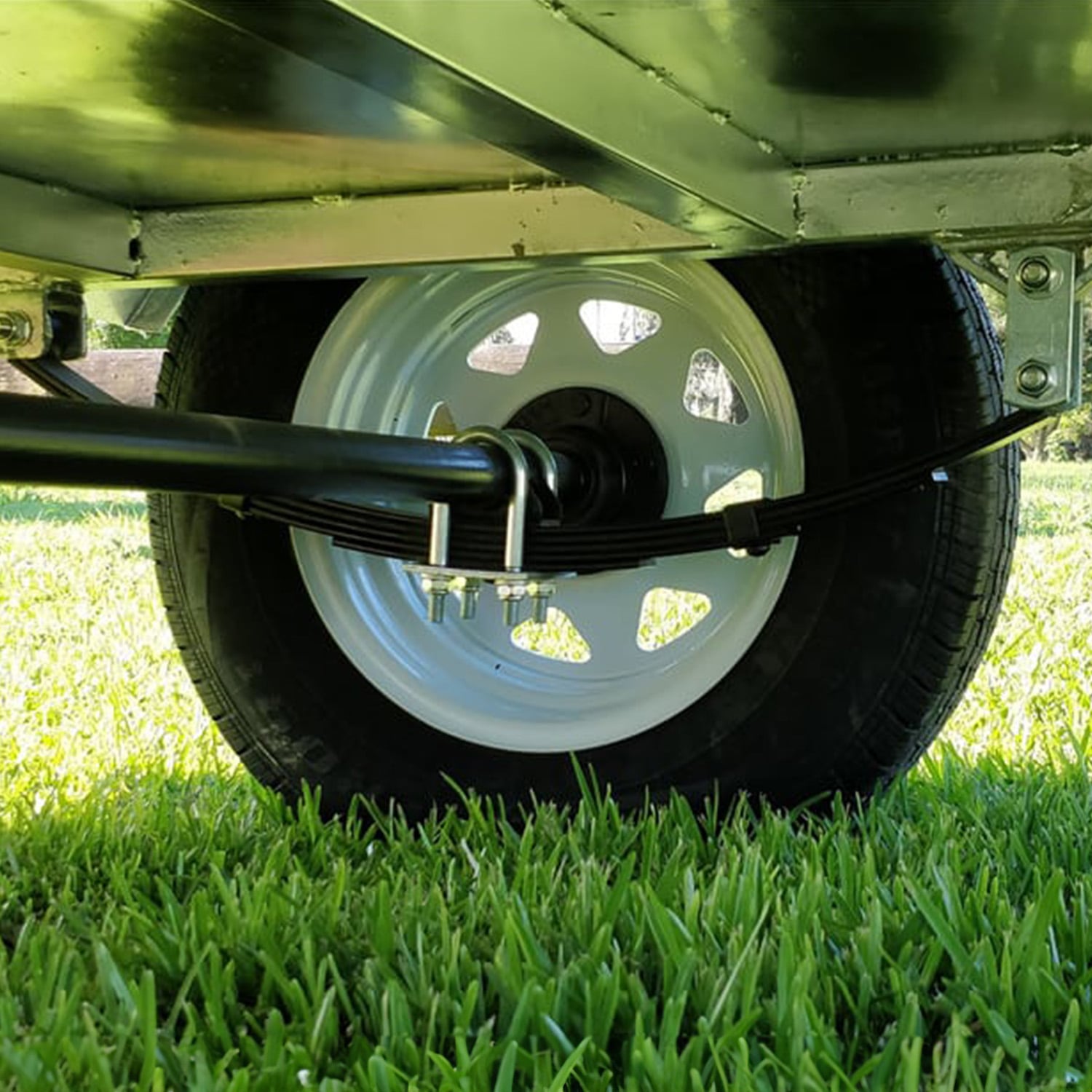

      • Springs : 45mm 7 Leaf Eye To Eye
      • Wheel Size : 14″
      • Tyre Size : 185/14

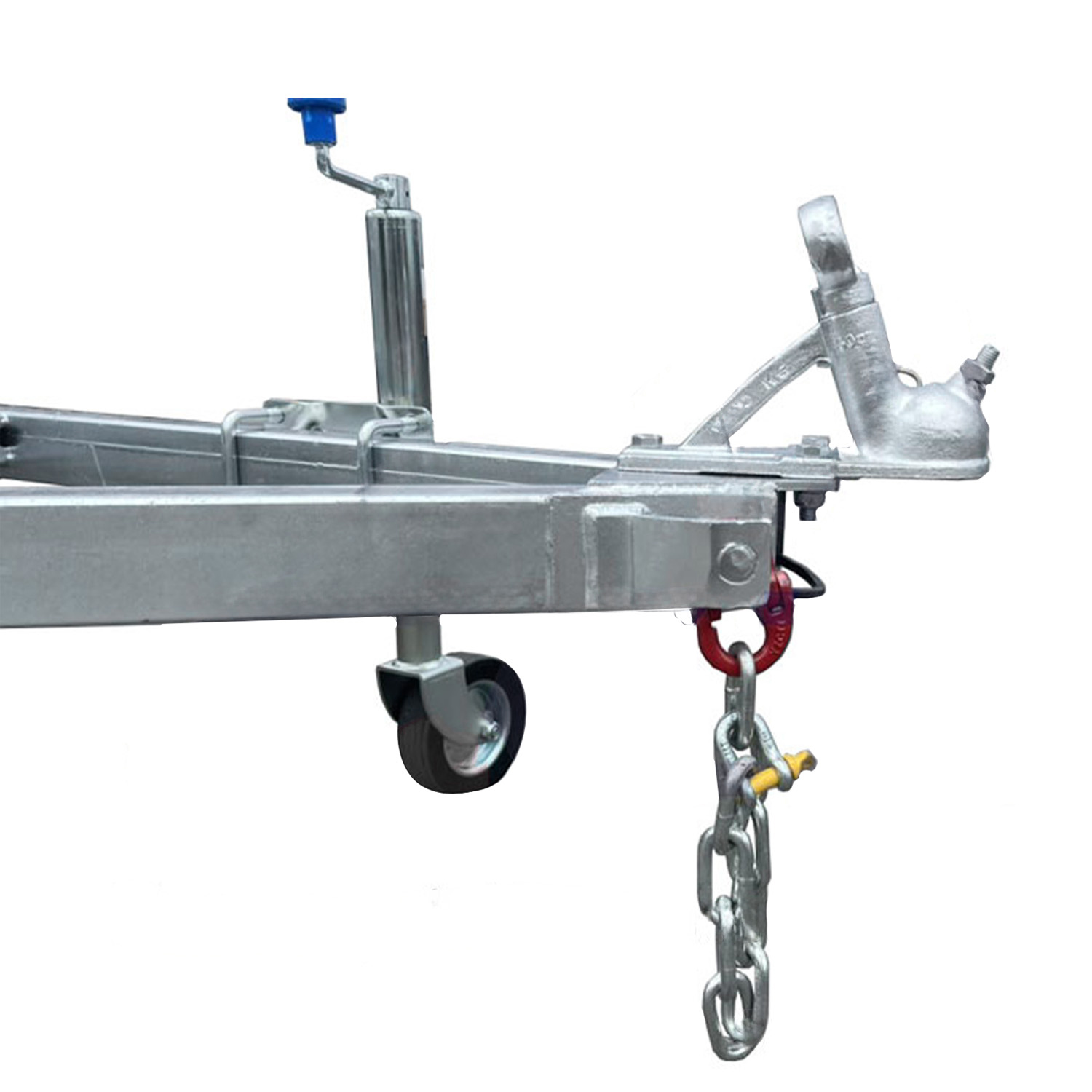

      • Coupling : 50mm 2000kg

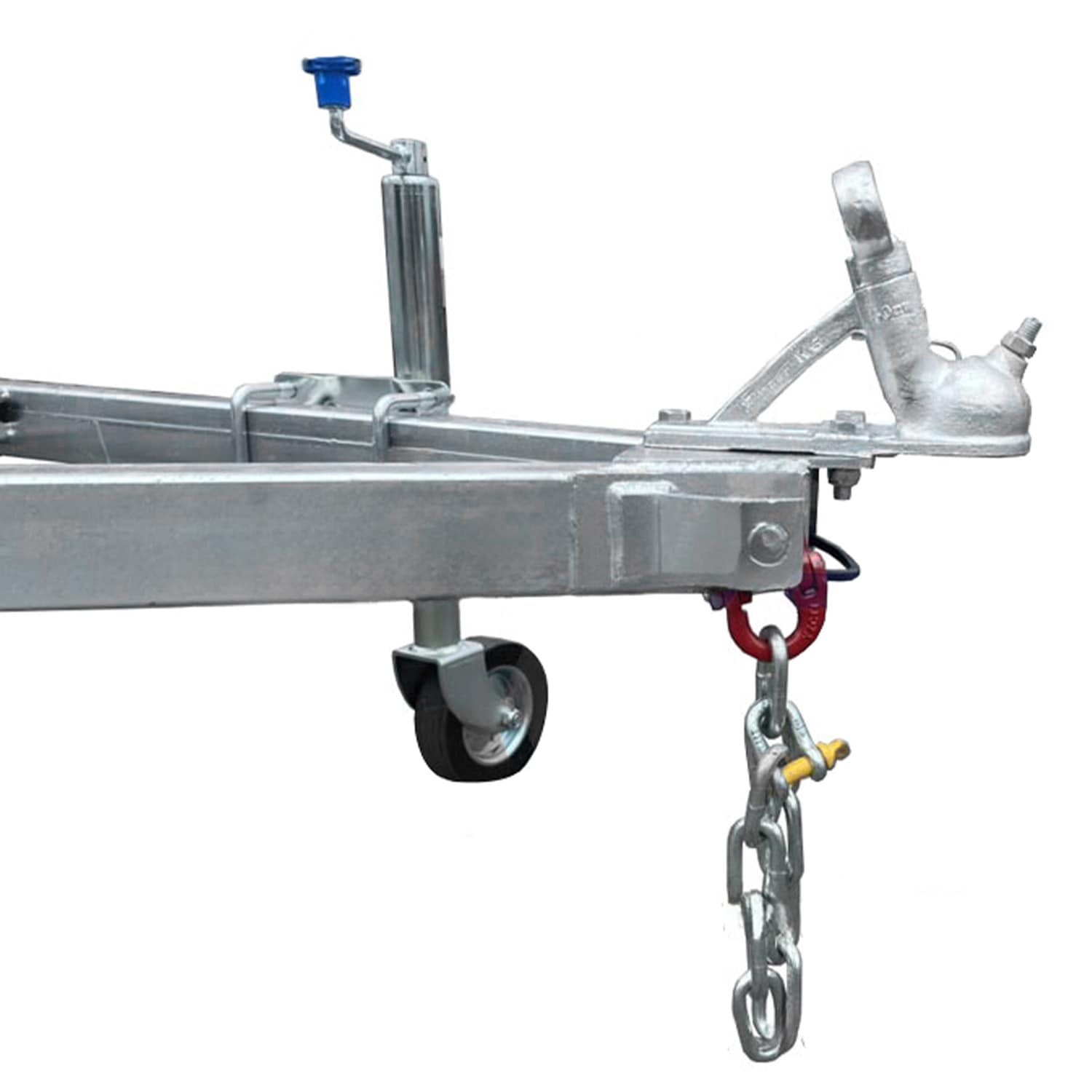

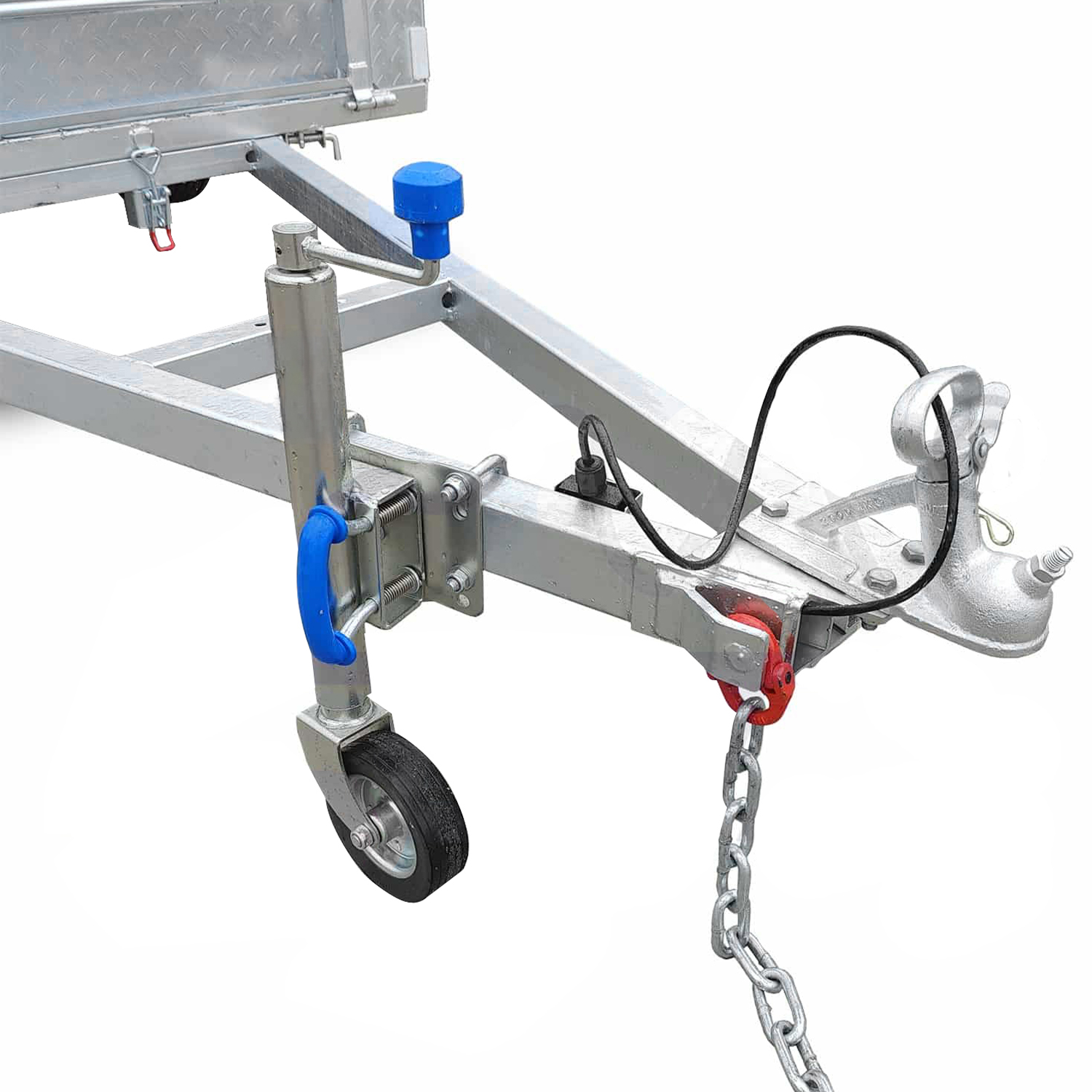

      • Jockey Whee : 6” Swing up

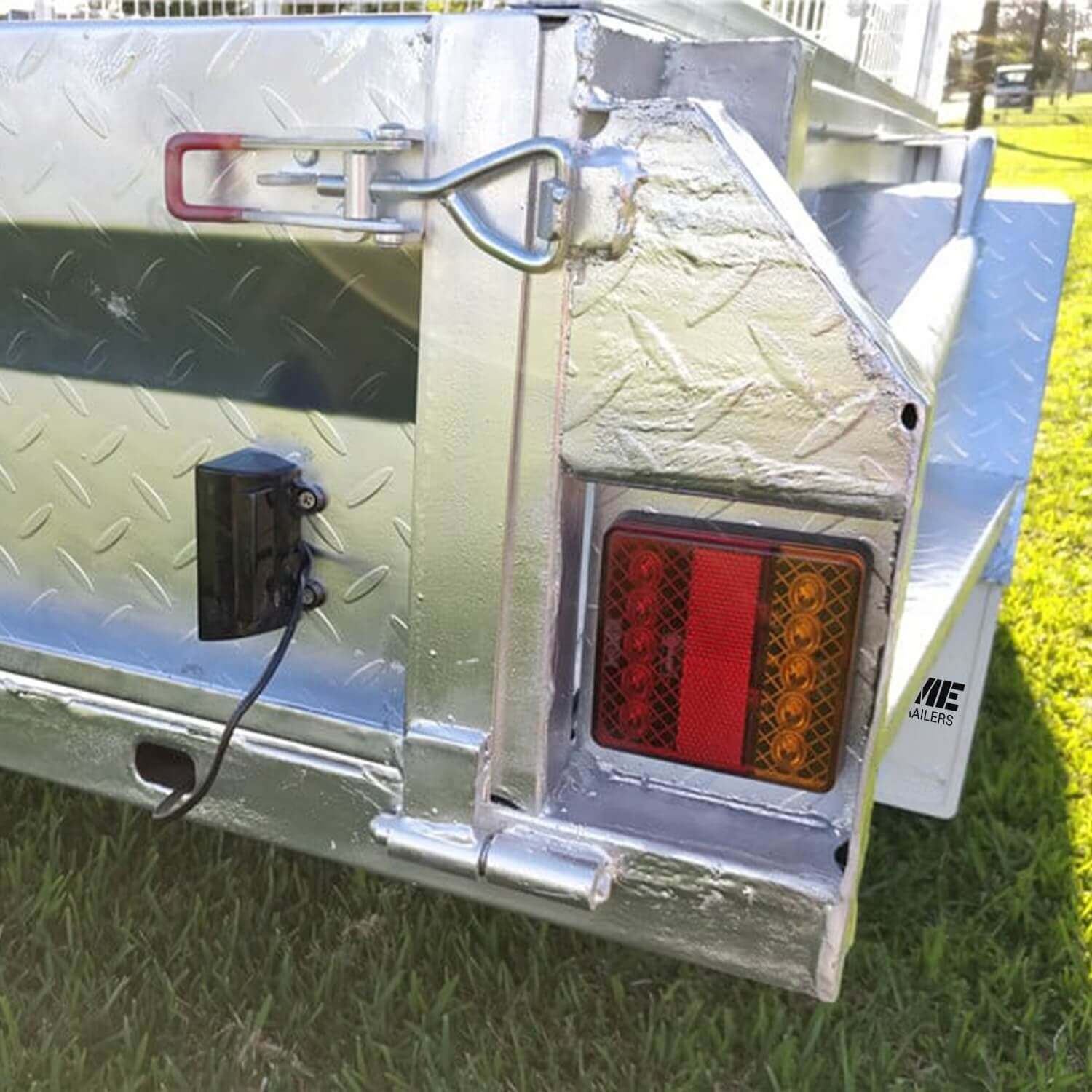

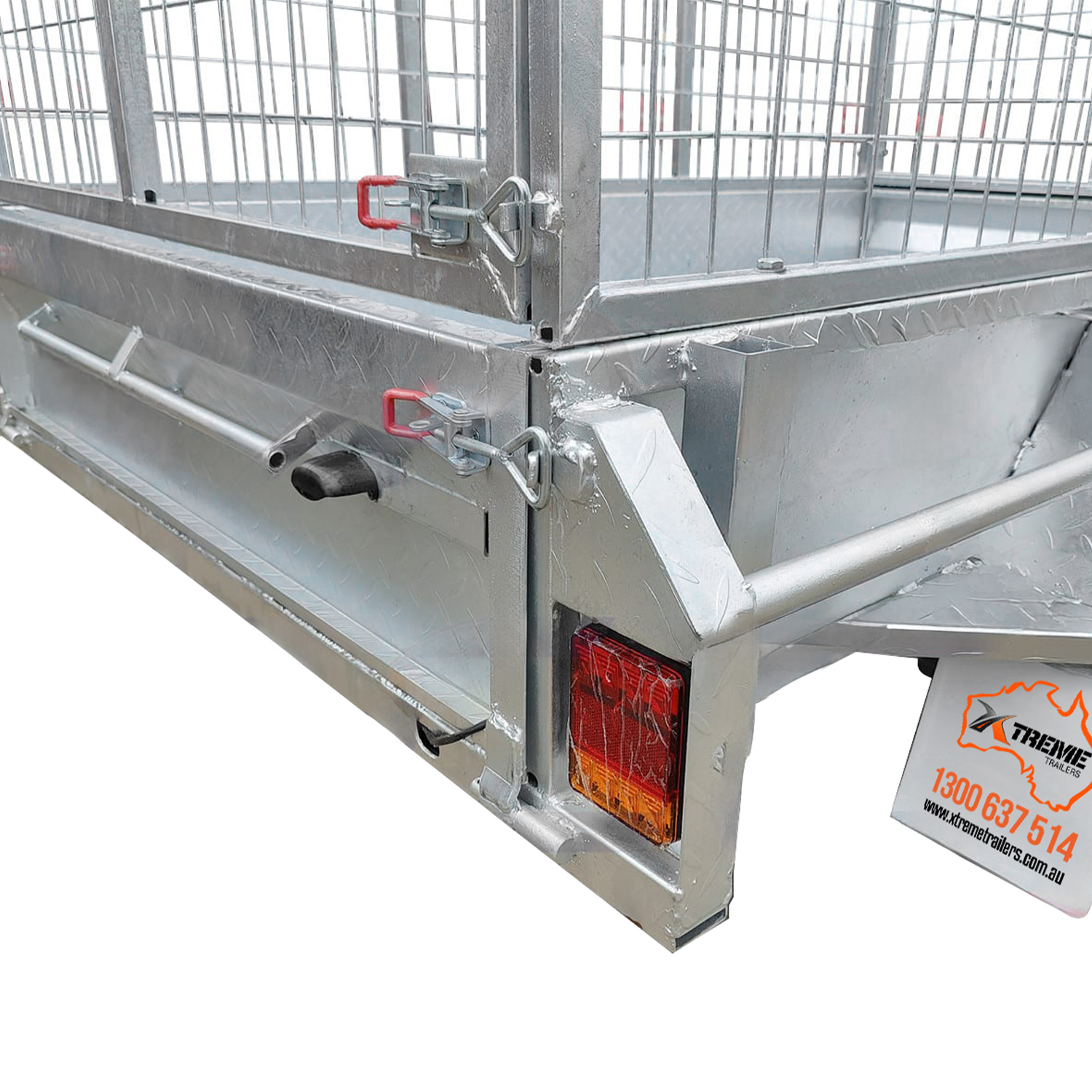

      • Light : Tail Light, LED
      • Plug : 7 Pin, Flat/ Small Round/ Big Round

      Add Reviews

      Related Products

      7x5 Single Axle Box Trailer ATM 750KG With Jockey Wheel

      SKU-SABTM75XT

      $1,869.00 Don't Pay $2,449.00 Save $580.00

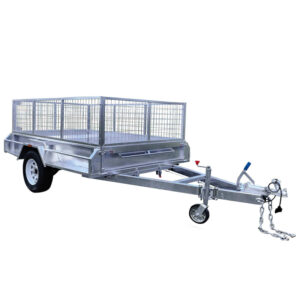

      9×5 Single Axle Box Trailer ATM 1400KG With Jockey Wheel

      SKU-SABTHD95XT

      $2,545.00 Don't Pay $3,399.00 Save $854.00

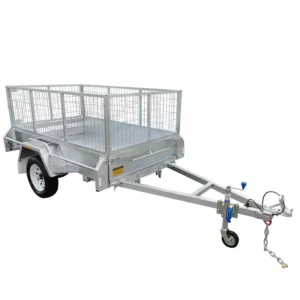

      6x4 Single Axle Box Trailer ATM 750KG With Jockey Wheel
