7×5 Single Axle Box Trailer ATM 750KG With Jockey Wheel

SKU-SABTM75XT ATM-750KG
$1,869.00

Don't Pay $2,449.00

Save $580.00

Finance Options Available
7x5 Single Axle Box Trailer ATM 750KG With Jockey Wheel*
$1,869.00
Cage*
Clear
$300.00
Ramp*
Clear
$300.00
Ladder racks*
Clear
$250.00
Aluminum Toolbox*
Clear
$0.00
Canvas Covers*
Clear
$490.00
Spare wheel*
Clear
$130.00
Spare wheel bracket*
Clear
$50.00
Mower Pad*
Clear
$380.00
Plug*
Clear
$0.00
Blue Slip*
Clear
$0.00

Deposit : $406.90 Per item

Delivery Options

1/191 The Horsley Drive Fairfield NSW 2165
Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

Calculate Shipping Cost

Get Finance

×

    7×5 Single Axle Box Trailer ATM 750KG With Jockey Wheel$1,869

    Enquiry Now

    ×

    Complete this enquire form to obtain additional information about our services or send personal complaint.

      7×5 Single Axle Box Trailer ATM 750KG With Jockey Wheel$1,869

      Description

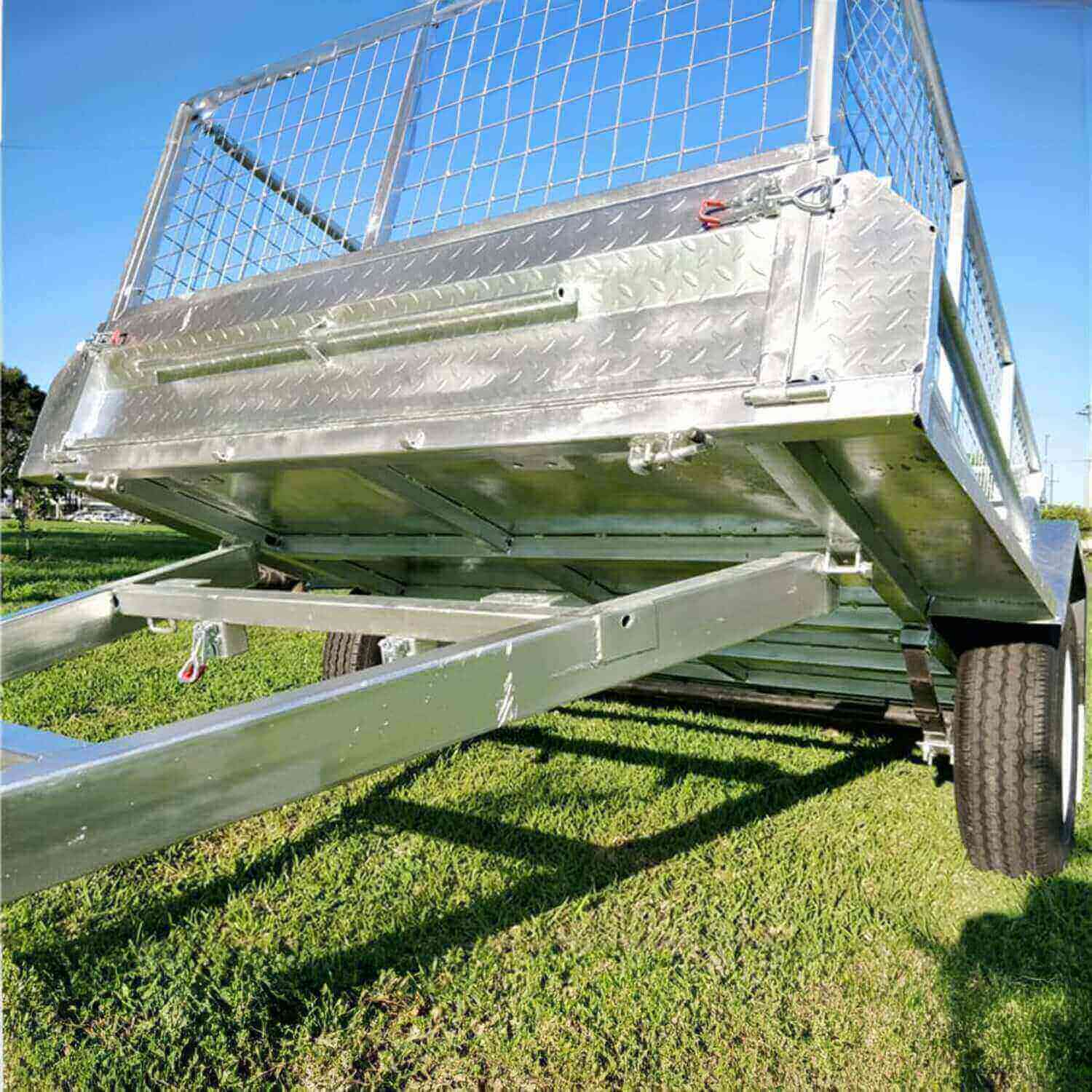

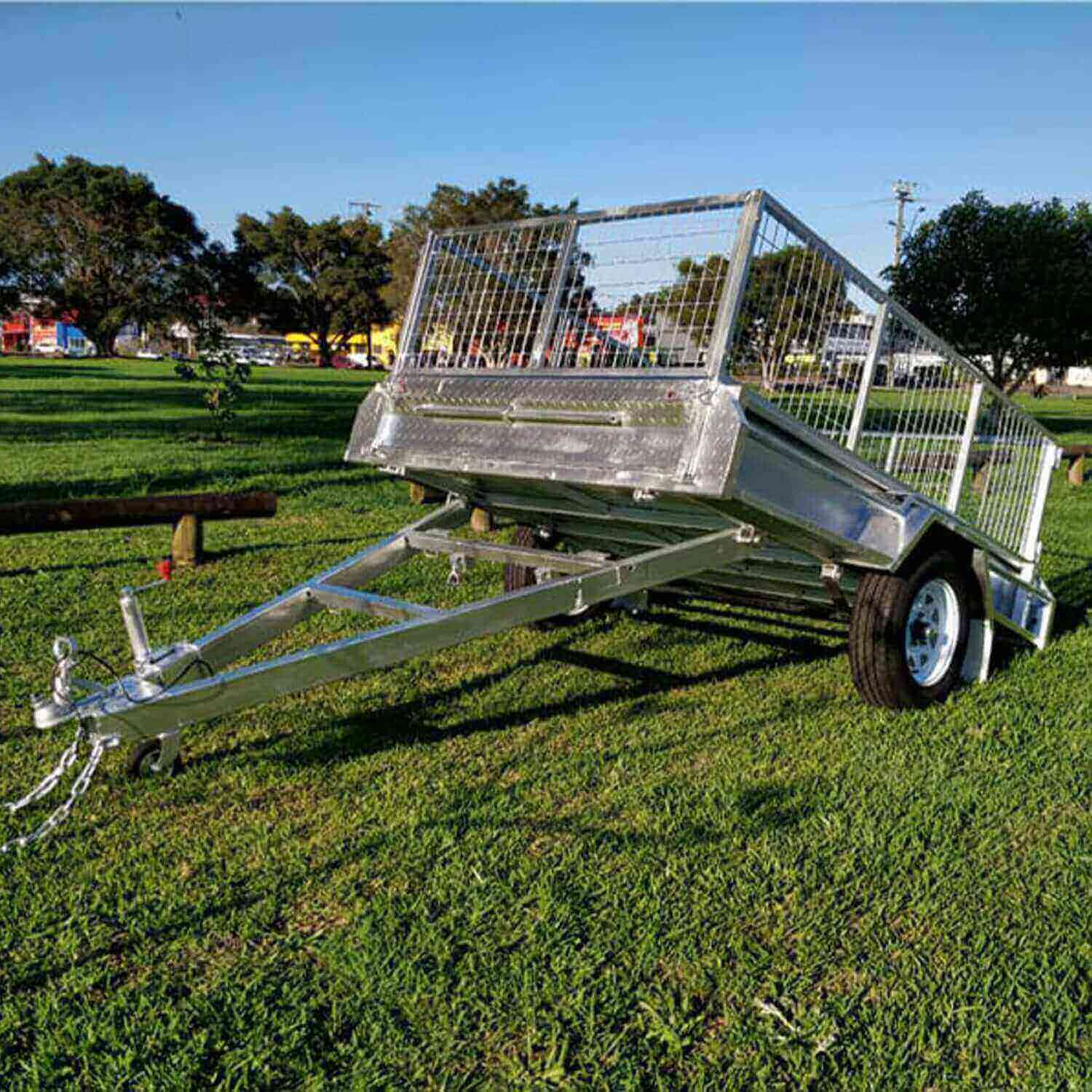

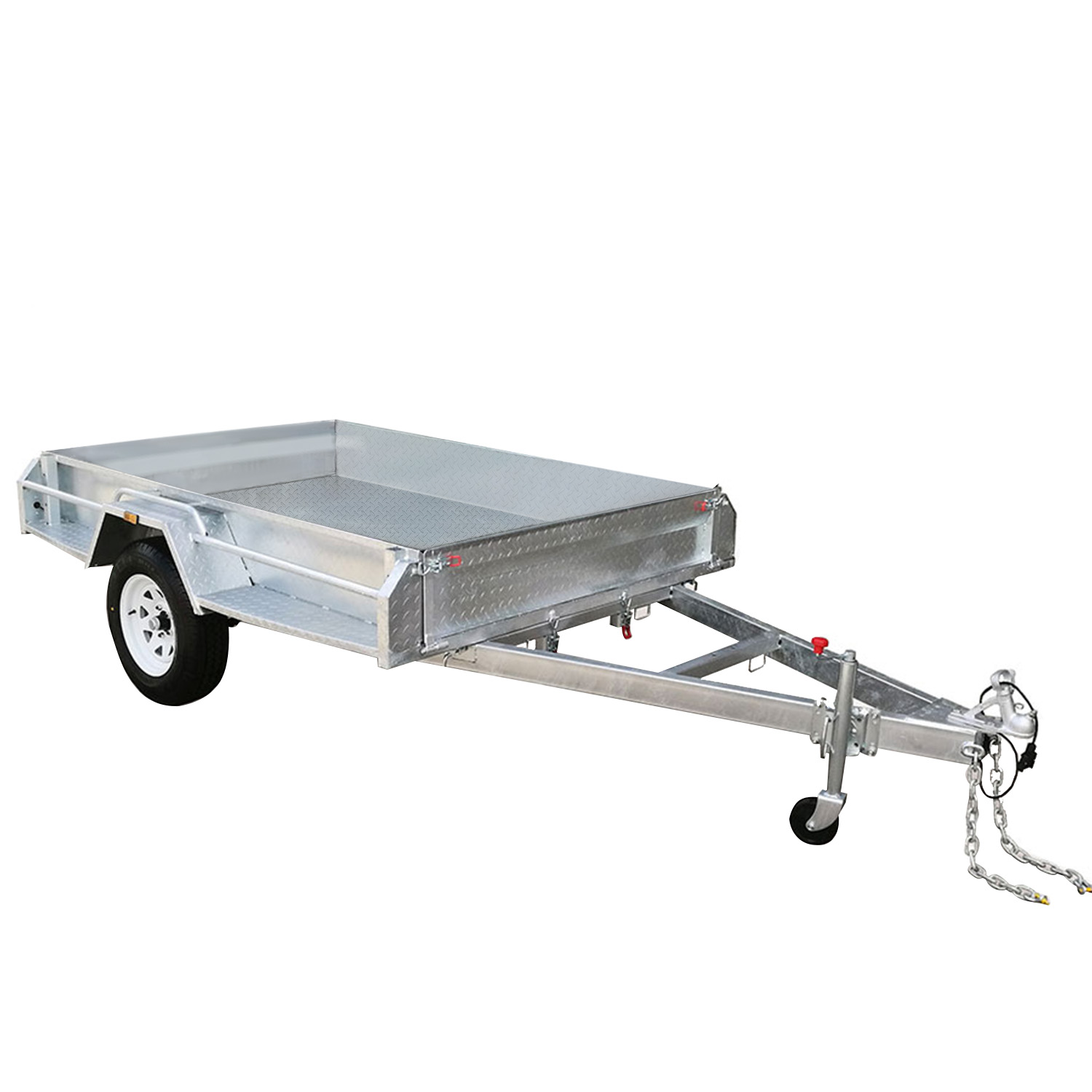

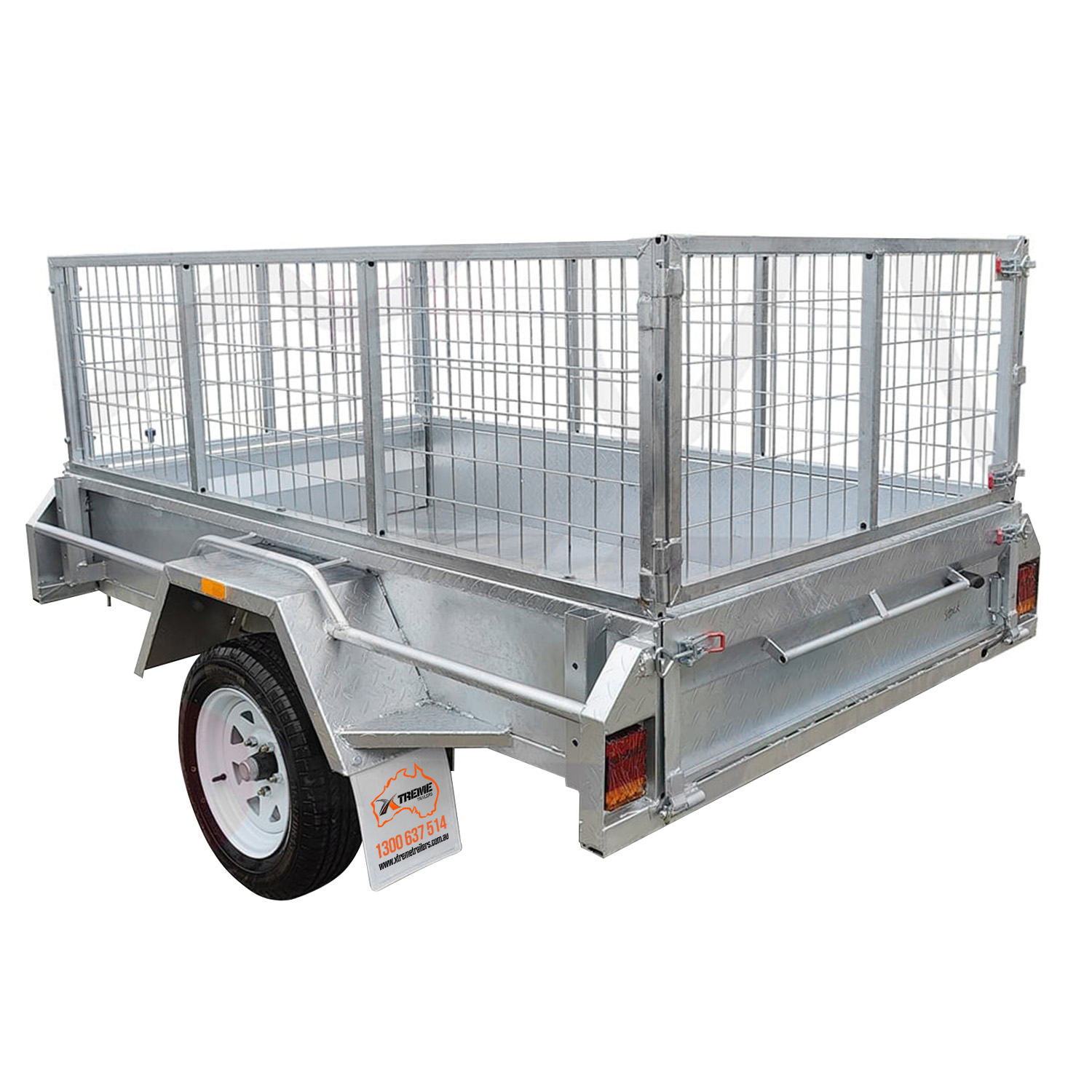

      7×5 Single Axle Heavy Duty Premium Box Trailer ATM 750KG With Jockey Wheel

      Xtreme Trailers is a leading trailer outlet based in Sydney and delivers to major locations across Australia, including Melbourne, Brisbane, Adelaide, Perth, Canberra, Newcastle, Wollongong, Port Macquarie, Coffs Harbour, Dubbo, Gold Coast, Sunshine Coast, Geelong, and Ballarat. We specialize in providing high-quality box trailers designed, engineered, and manufactured to meet The Australian Design Rules (ADRs) while enduring challenging environmental conditions. Our 7×5 Heavy Duty Box Trailer is perfect for small load transport, featuring upgraded 45mm 7 Leaf Eye To Eye springs.

      Key features of our 750kg box trailers include a fully welded chassis, hot-dipped galvanized steel, and a Checker Plate Floor. Rigorously tested and certified to meet RVSA requirements, these trailers offer strength for various tasks at affordable prices.

      We provide a wide range of sizes, customizable configurations, and accessories to cater to your specific needs. Choose from our Single Axle ATM 750KG Box Trailer series in sizes such as 7×4, 7×5, or 8×5. For heavy-duty requirements, our Premium Heavy Duty and Premium Tandem Box trailers can handle up to 3,200kg ATM, making them suitable for general trailer licenses and providing enhanced stability with an additional axle.

      Discover our diverse product range, including Tandem trailers, Boat & Jetski trailers, Cattle / Livestock crate trailers, Hydraulic tipper trailers, Flat Top trailers, Car trailers, Tradesman trailers, ATV Trailers, Plant trailers, and accessories. Xtreme Trailers offers top-quality options to meet your specialized trailer needs across major cities in Australia.

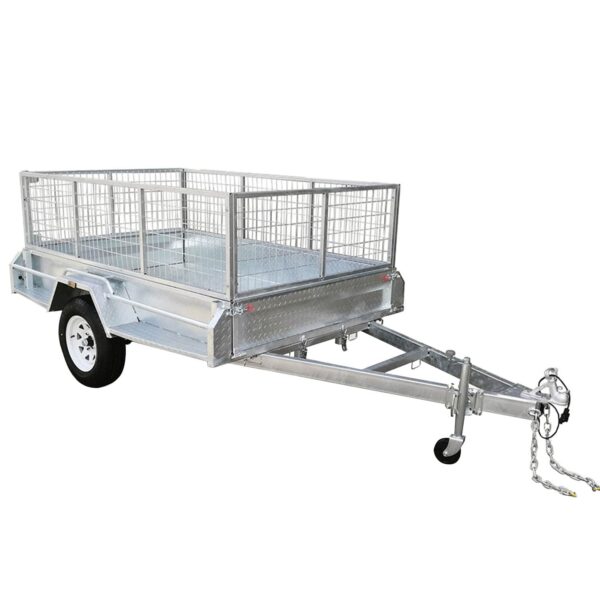

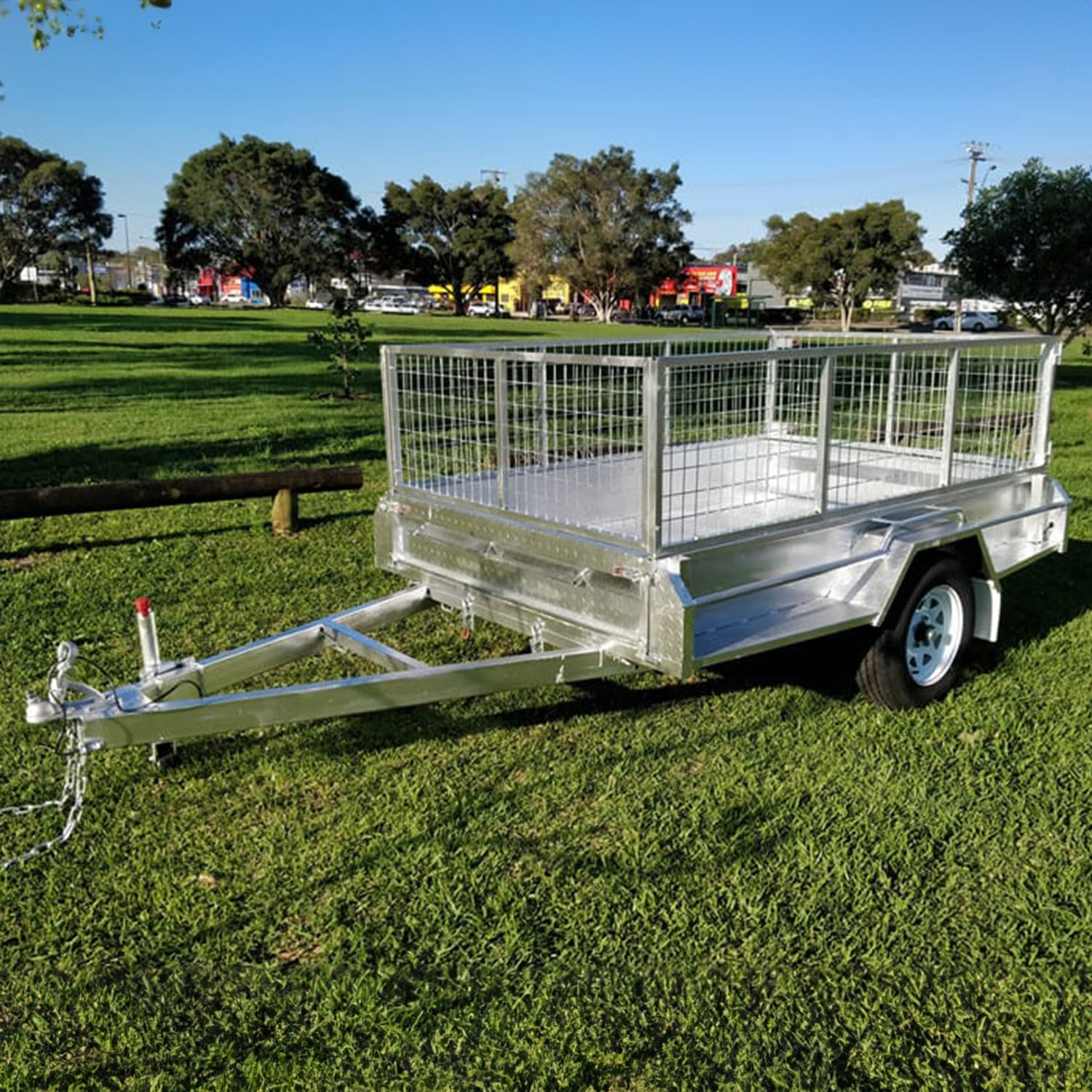

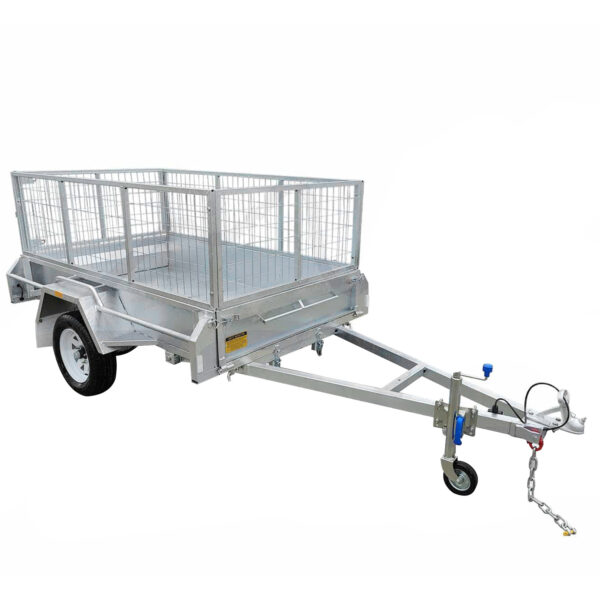

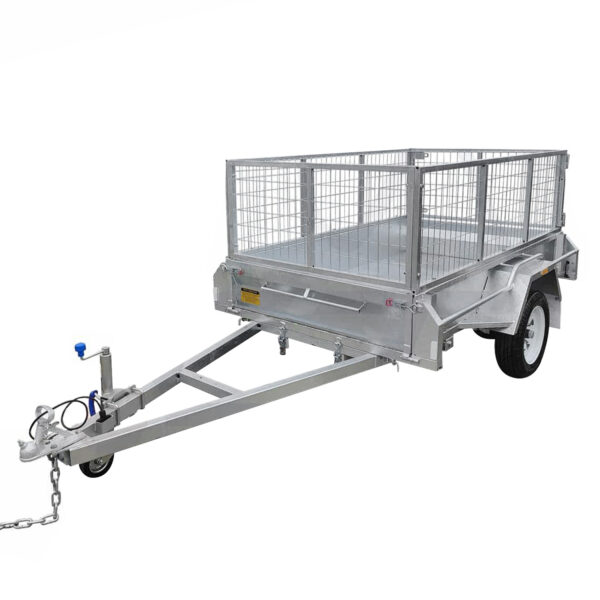

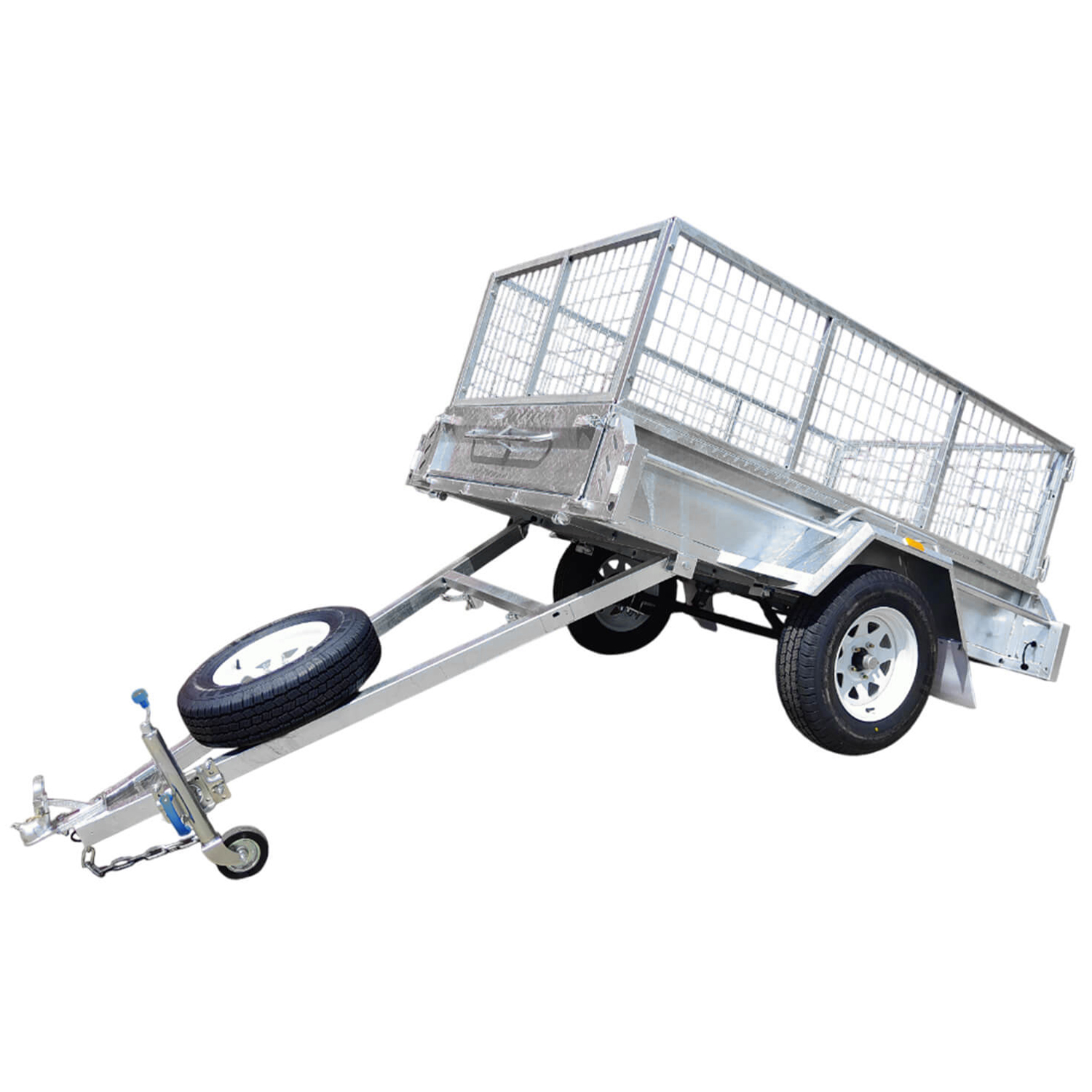

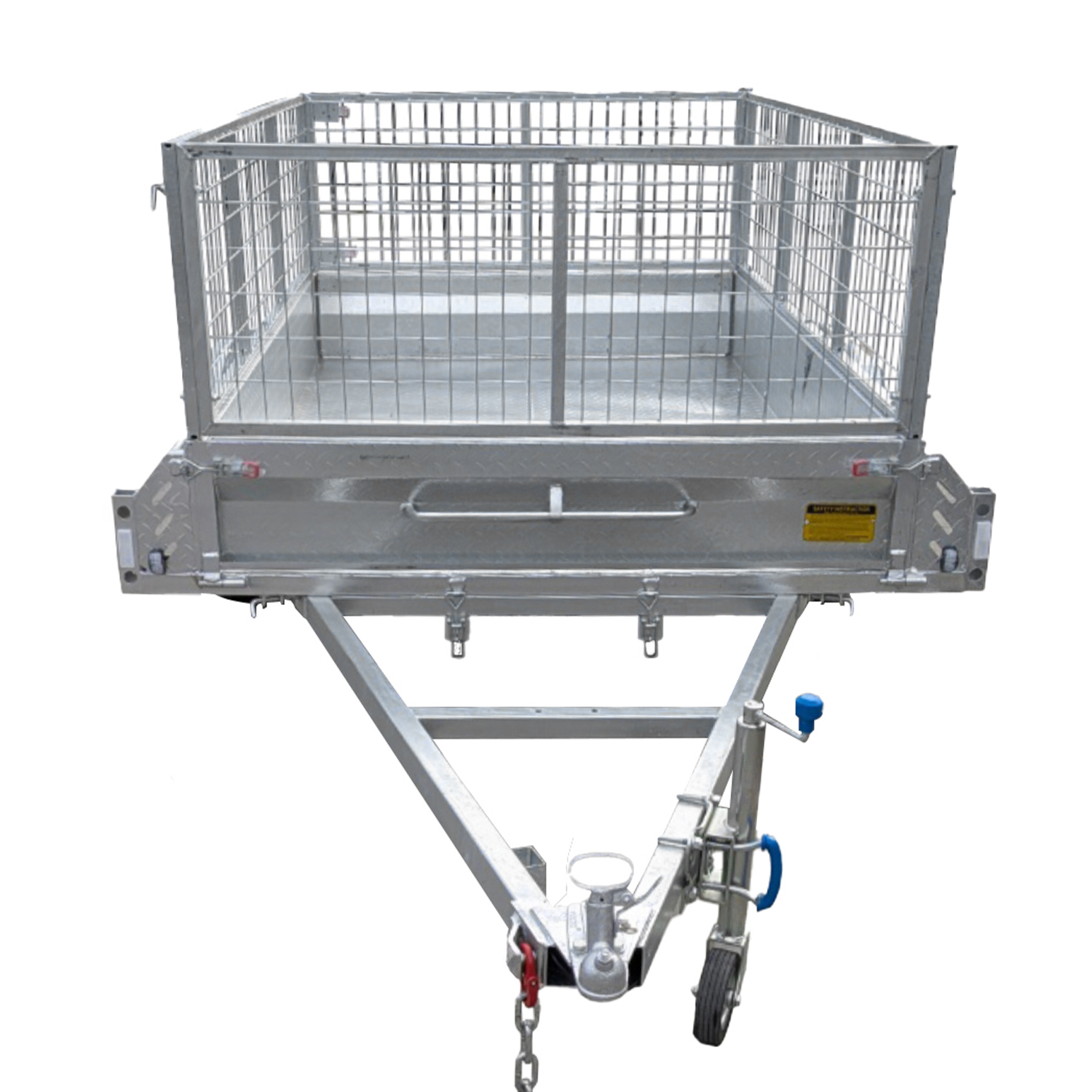

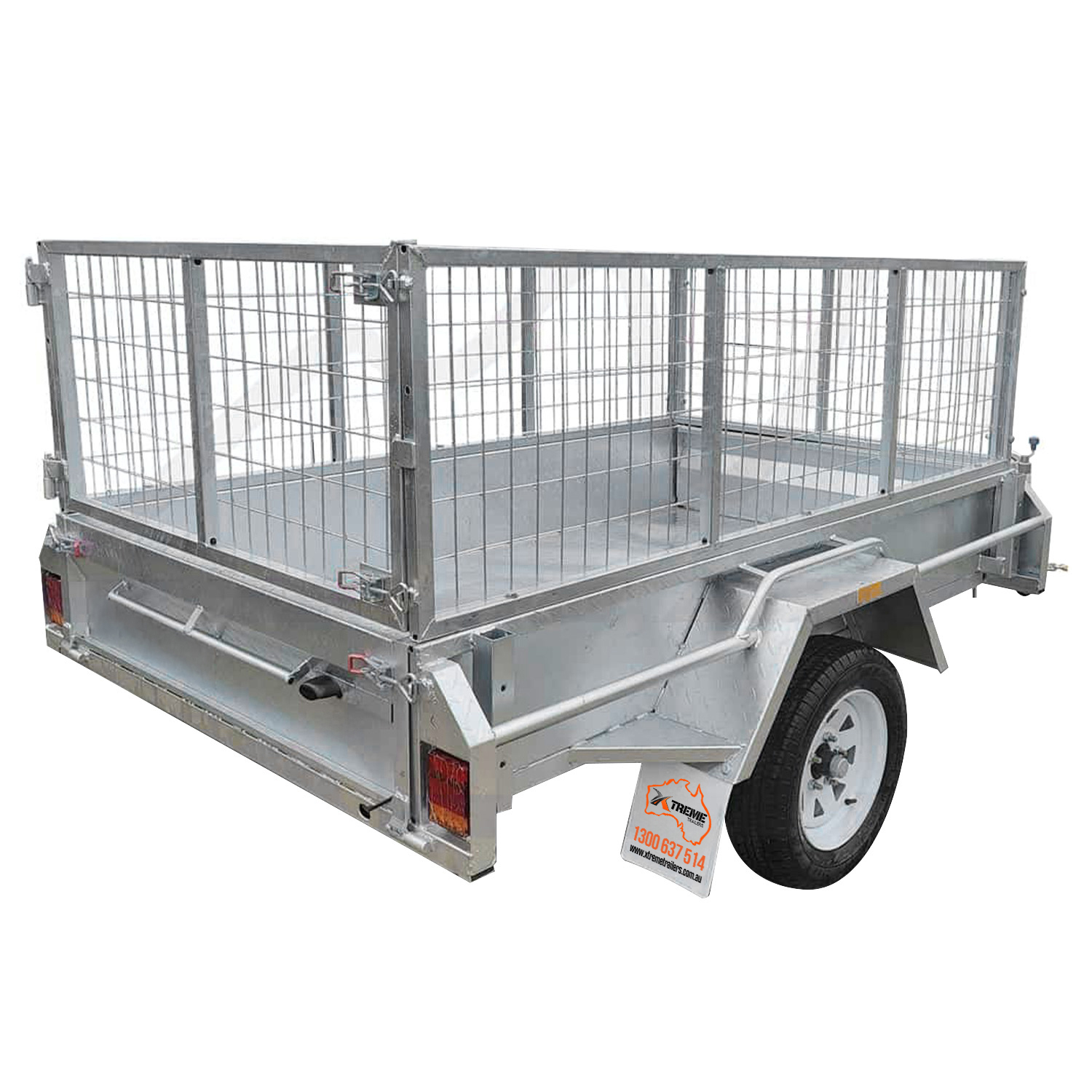

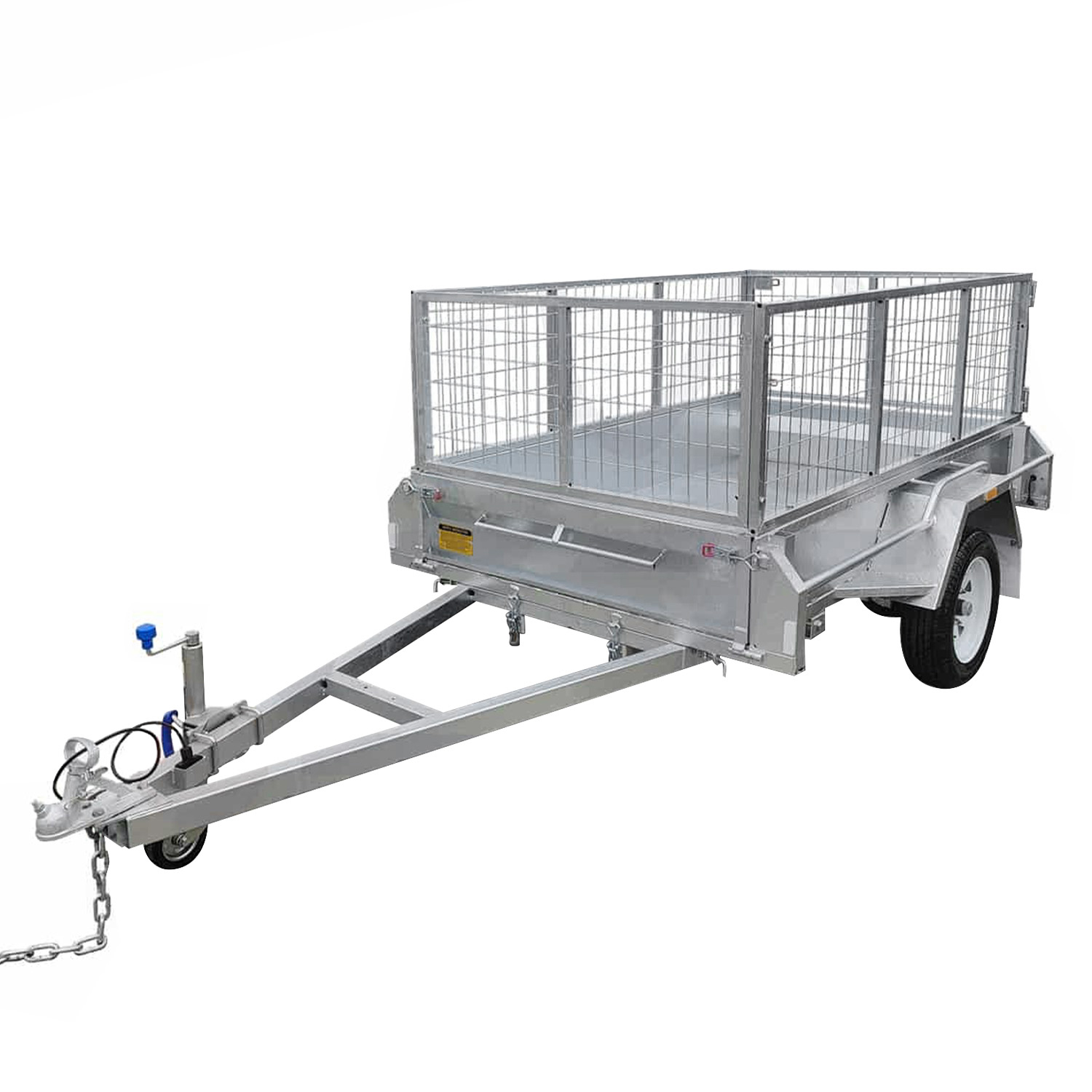

      NOTE: Cage displayed in images is for illustration purposes only.

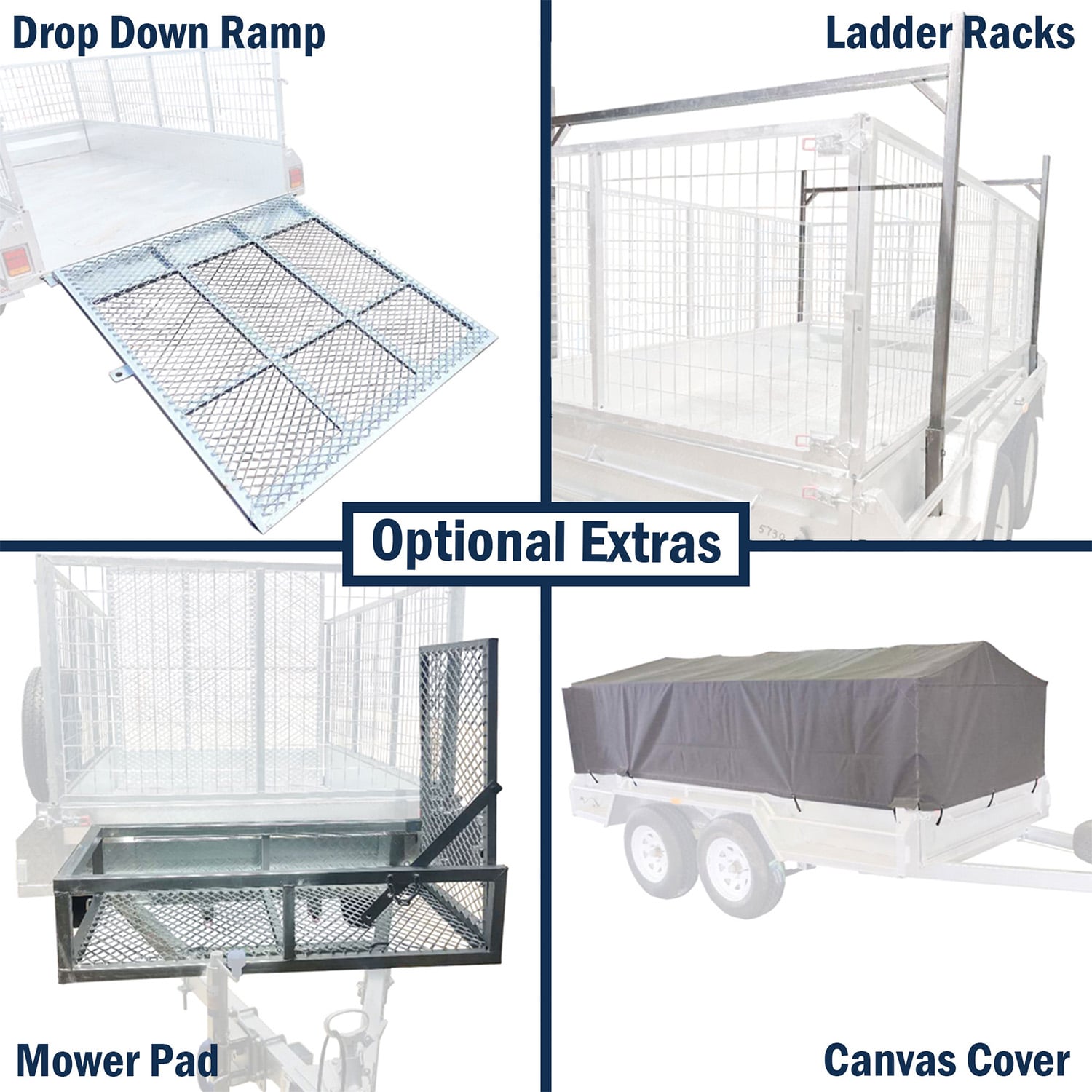

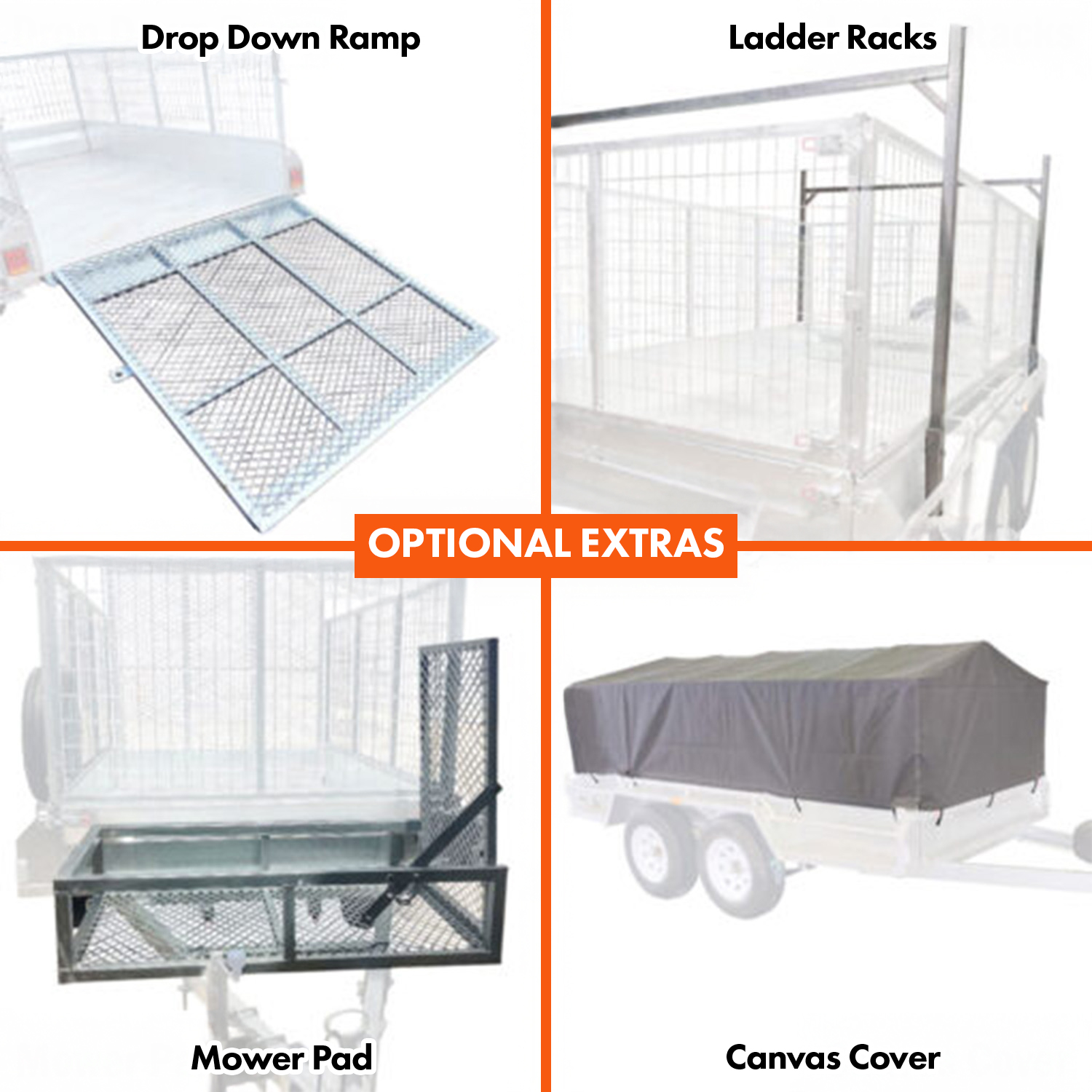

      Optional Extras

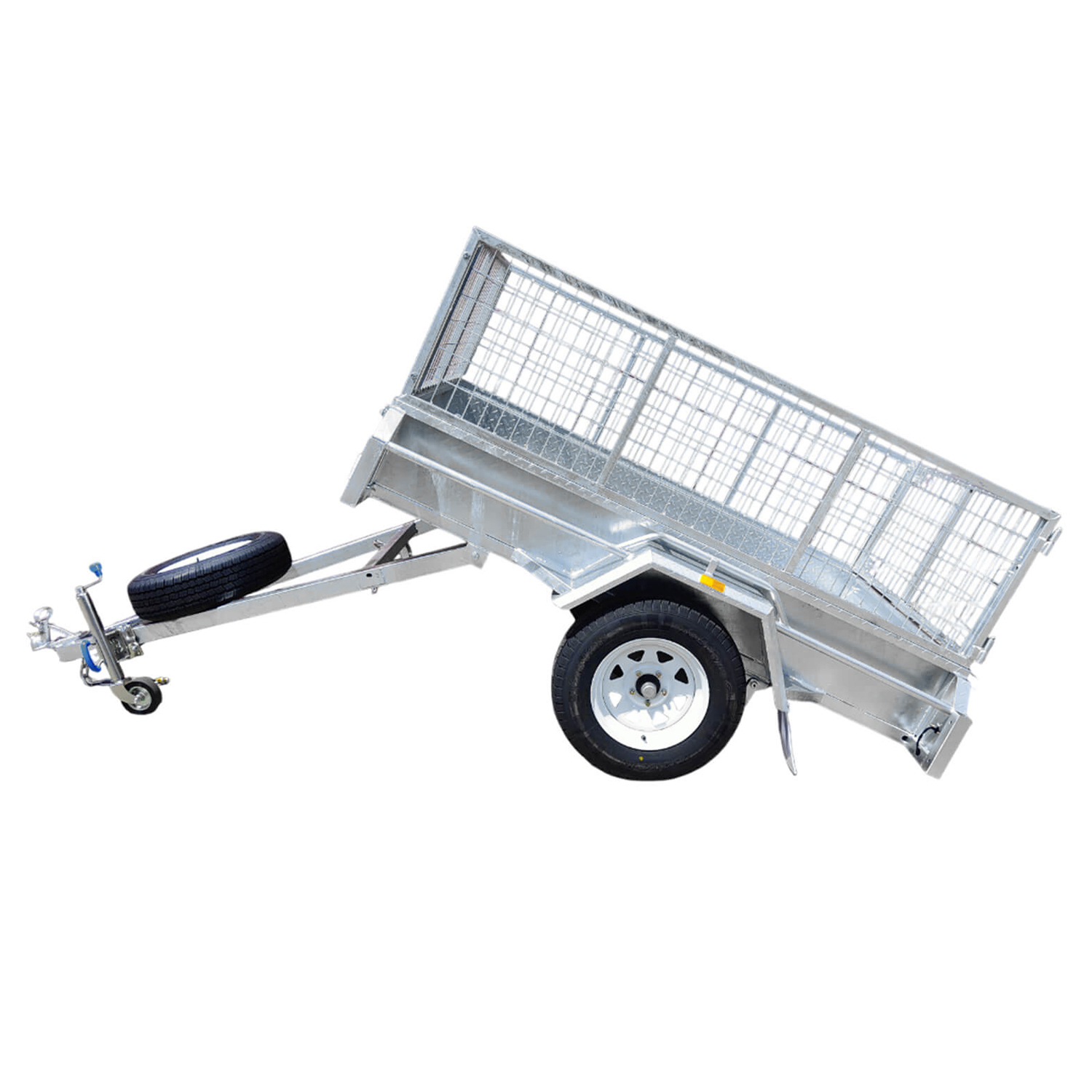

      • Spare Wheel
      • Mounting Spare Wheel Holder
      • Removable 600mm/ 900mm Cage
      • Heavy Duty Mesh Ramp Door
      • Canvas Cover For 600mm Or 900mm Cage
      • Ladder Racks For 600mm Or 900mm Cage
      • Tool Box
      • Mower Pad

      Warranty

      The company guarantees all its distributed goods against defective parts or workmanship with the following warranty provisions:

      • 5-Year Structural Warranty on all Brand-New Trailers: This warranty excludes coverage for surface rust, mistreatment, damage, or misuse.
      • 1-Year Warranty on Leaf Springs, Lights, Wiring, Jockey Wheel, and All Other Parts.
      • Warranty Exclusion for Second-hand or Used Trailers or Goods.

      Specifications

      • Model Number : SABTM75
      • ATM : 750kg
      • Tare : 358kg(Exclude cage)
      • Capacity : 392kg

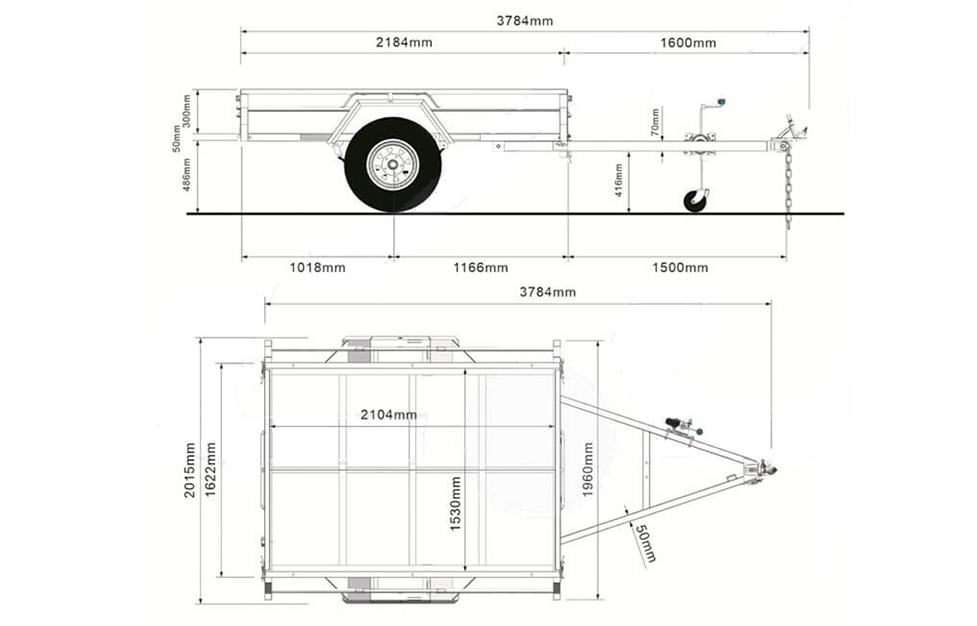

      • Internal Trailer Size : 2100mm x 1530mm x 300mm
      • Side : 300mm High, Fully Welded
      • Drawbar : 1600mm, 100mmx50mm RHS
      • Hot Dipped Galvanised
      • Fully Welded Body & Chassis

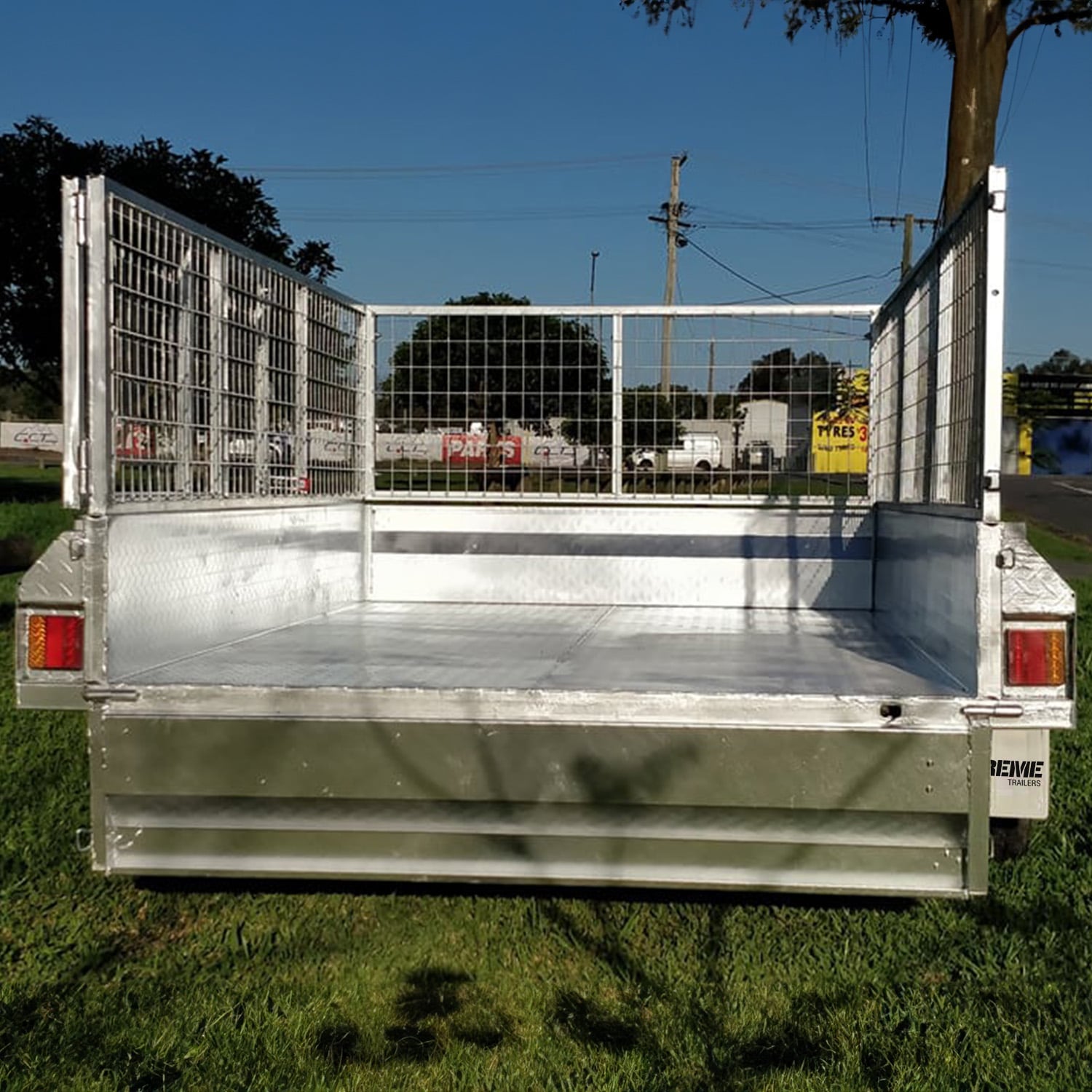

      • Removable Front and Rear Drop Down Gates
      • Welded Ladder Racks Holders
      • 6 Locking Points On Drawbar
      • Flooring : Checker Plate Floor
      • Tie Down Rails All Around

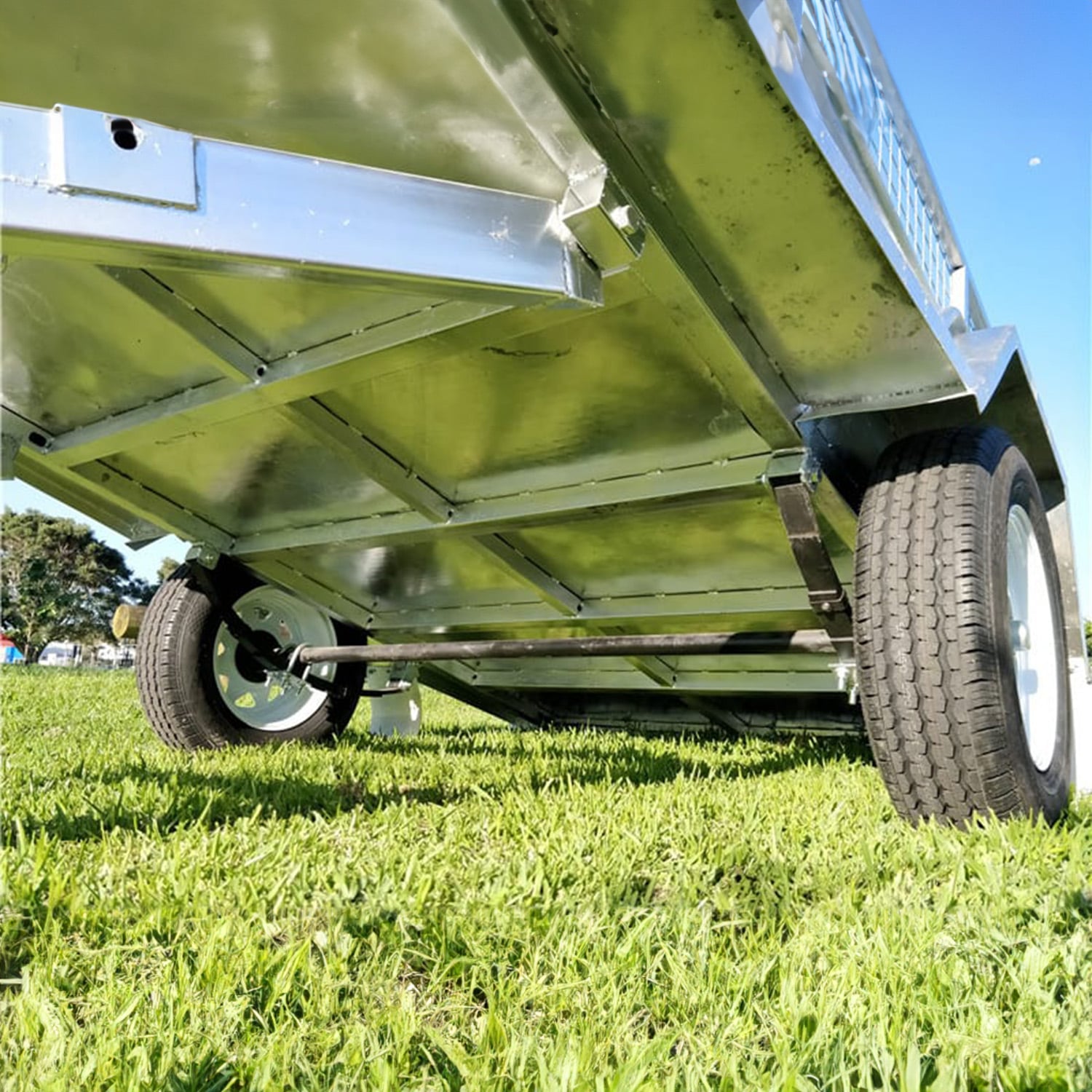

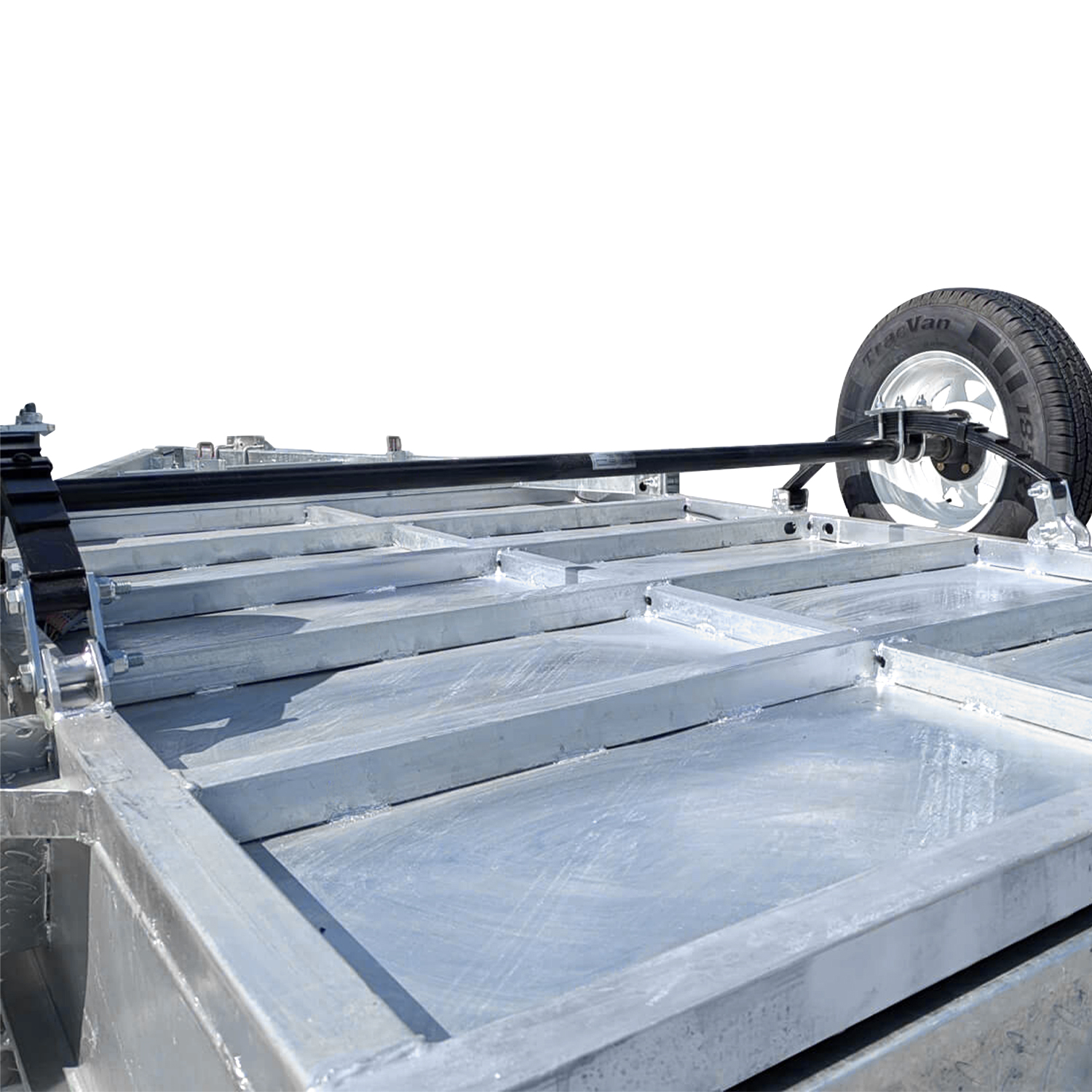

      • Support : Better Structure Support 50mm×50mm SHS Support Beams From Left To Right 40mm×40mm SHS Support Beams From Front To Back

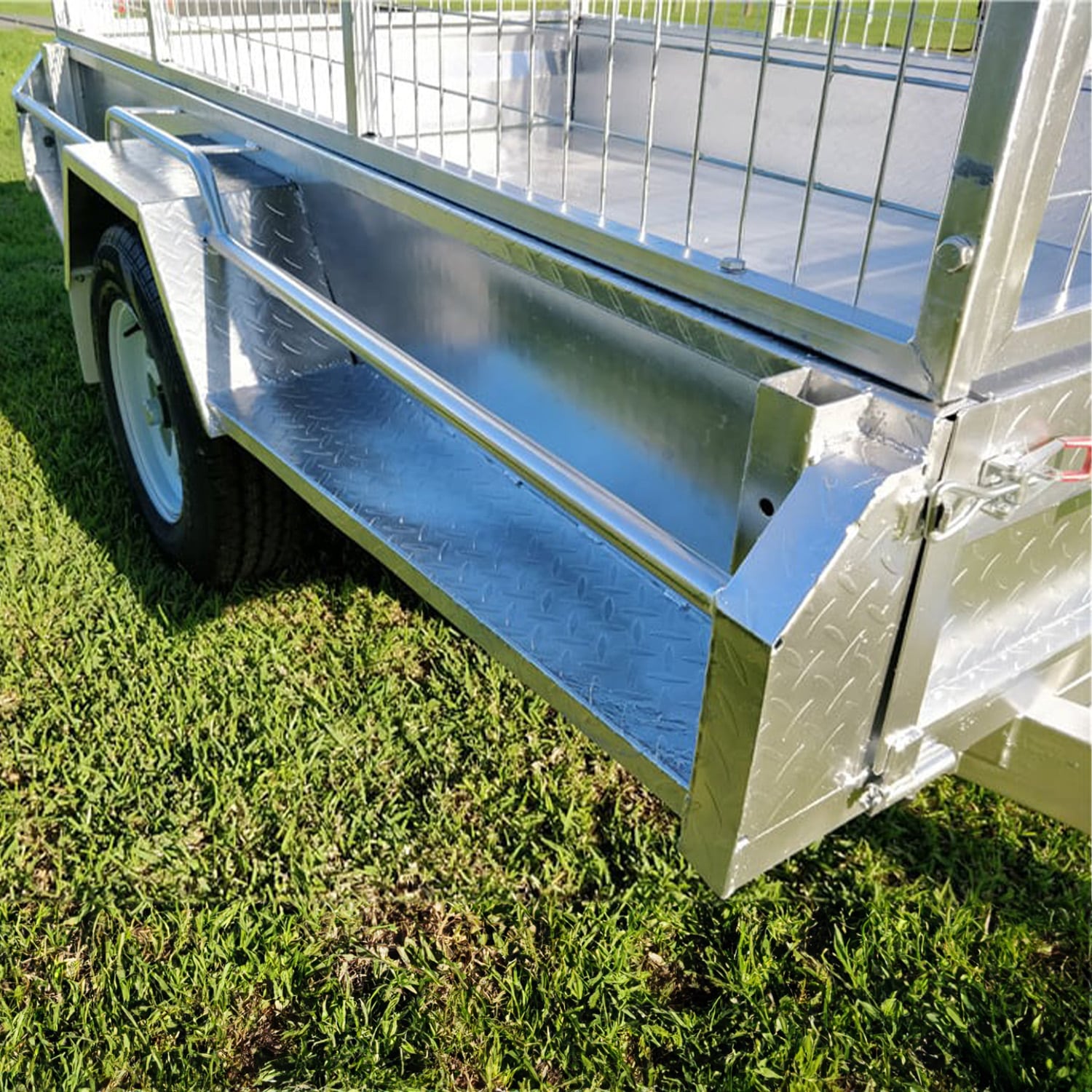

      • Step-up Platforms On Both Sides
      • Axle : Single Axle, 40mm Round Solid Axle
      • Brake : None

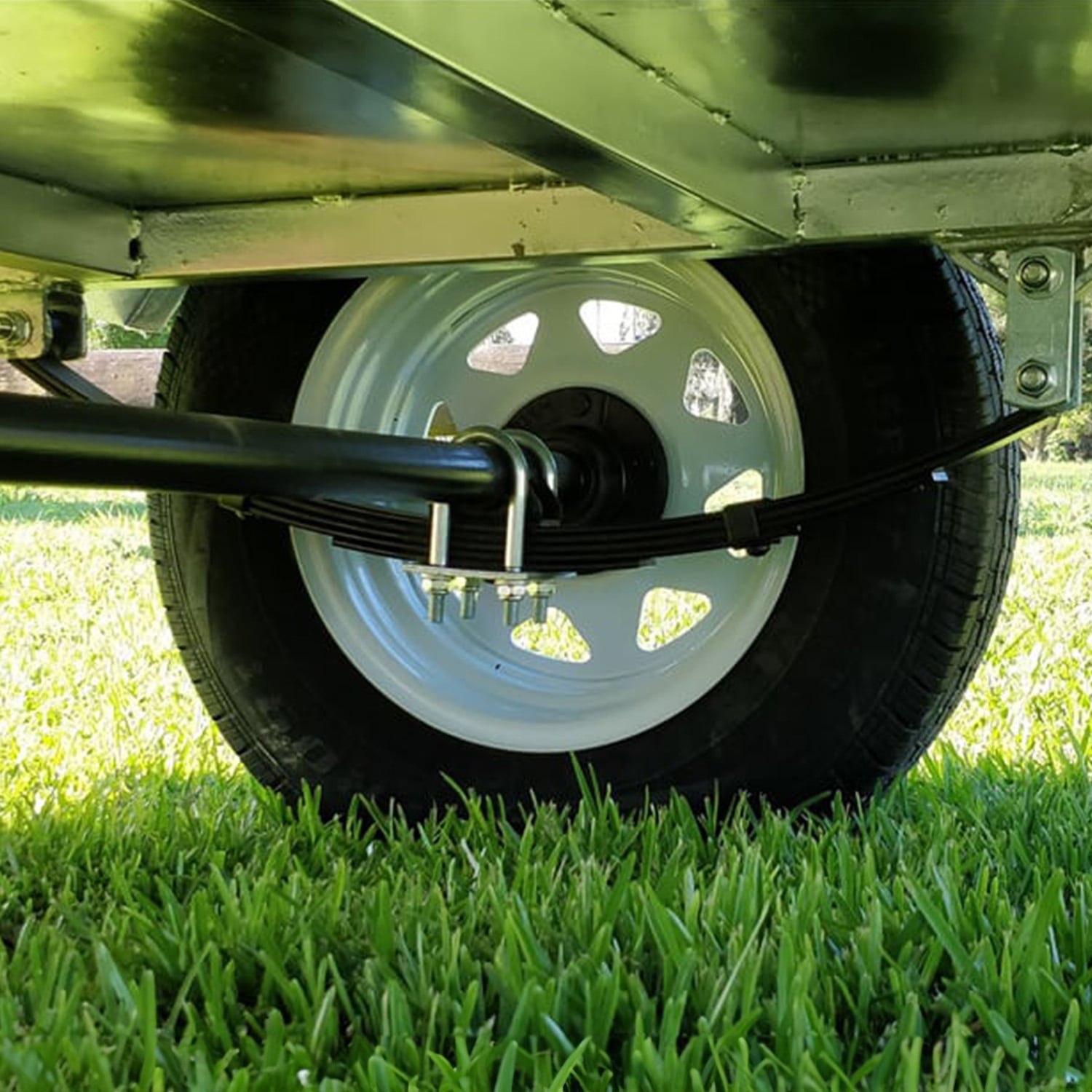

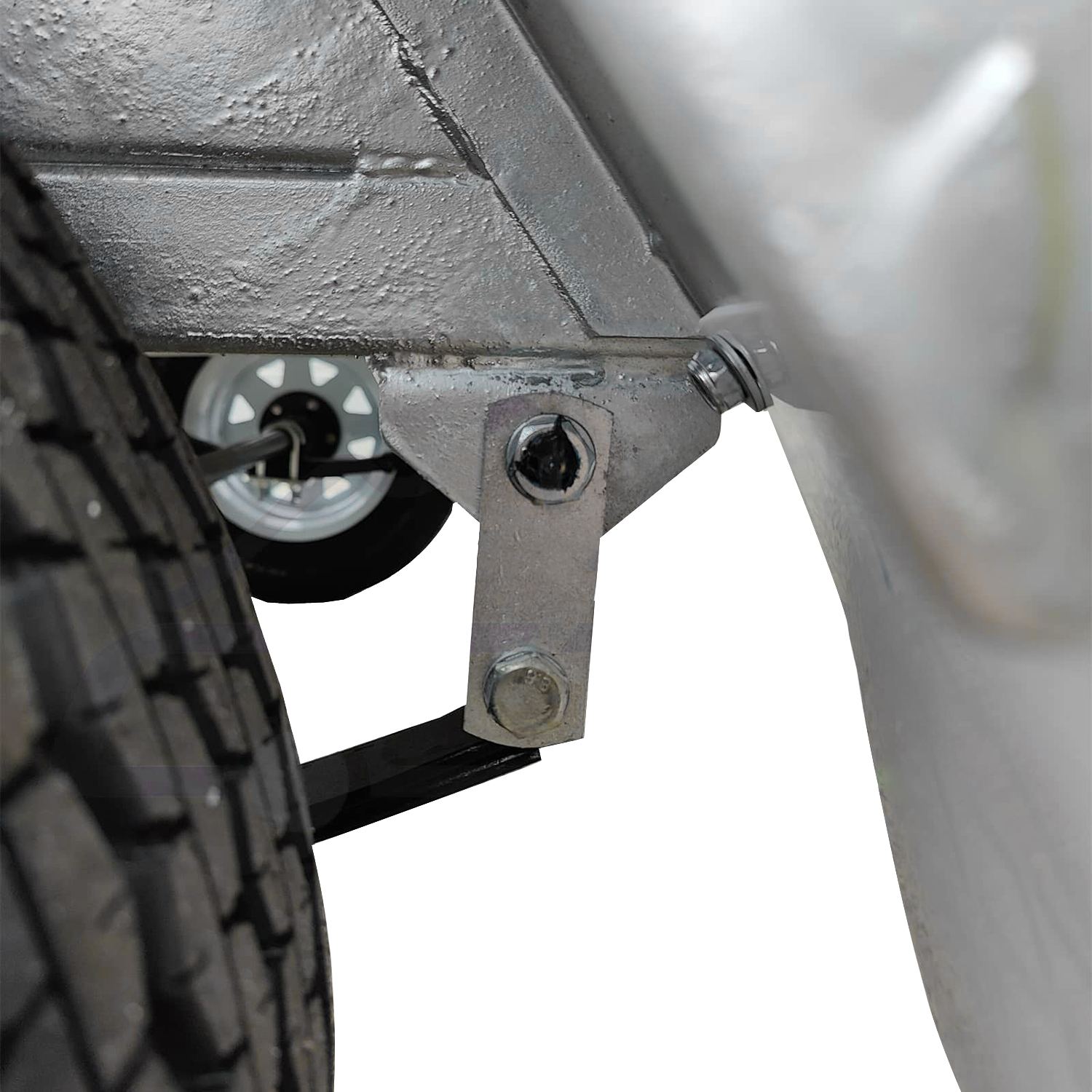

      • Springs : 45mm 7 Leaf Eye To Eye
      • Wheel Size : 14″
      • Tyre Size : 185/14

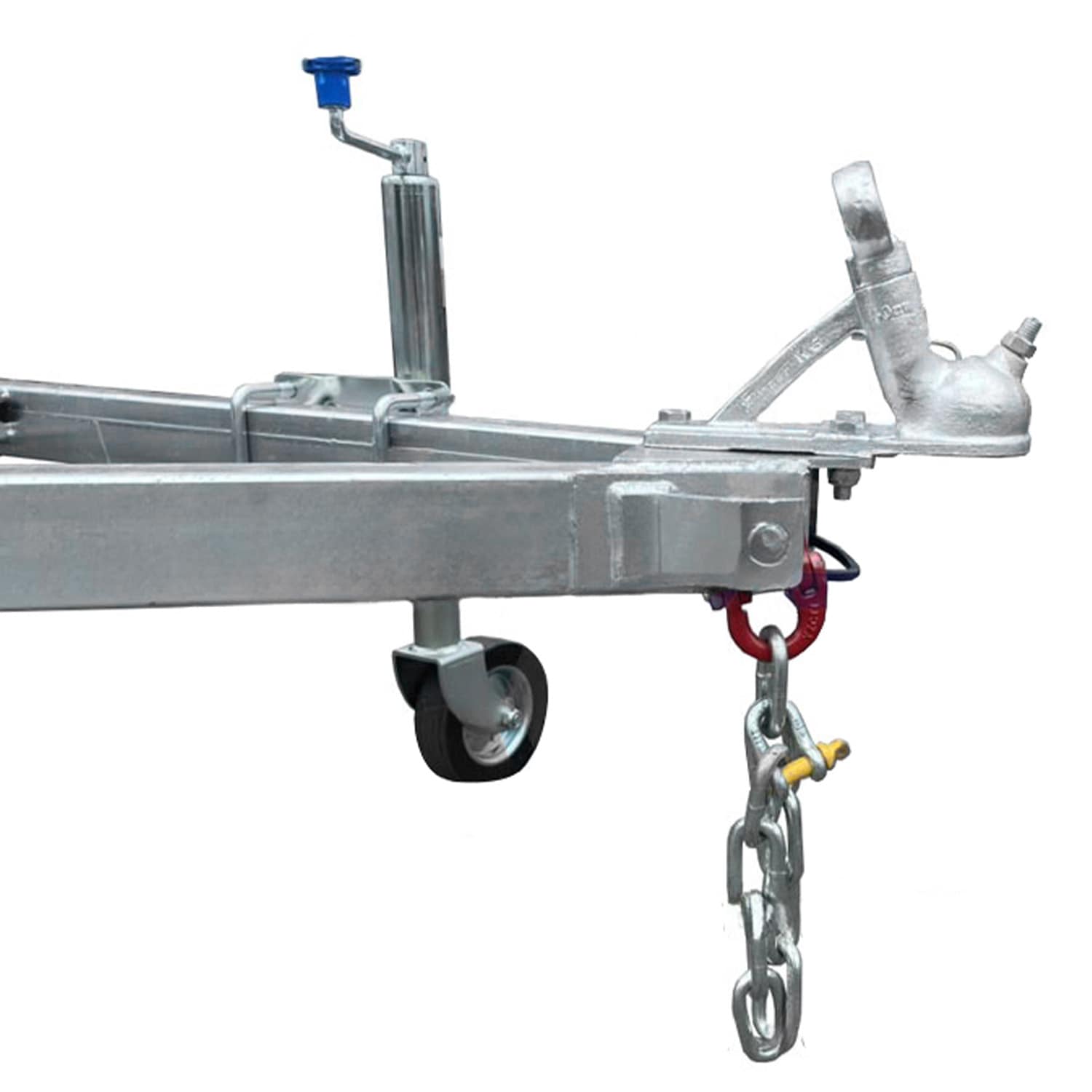

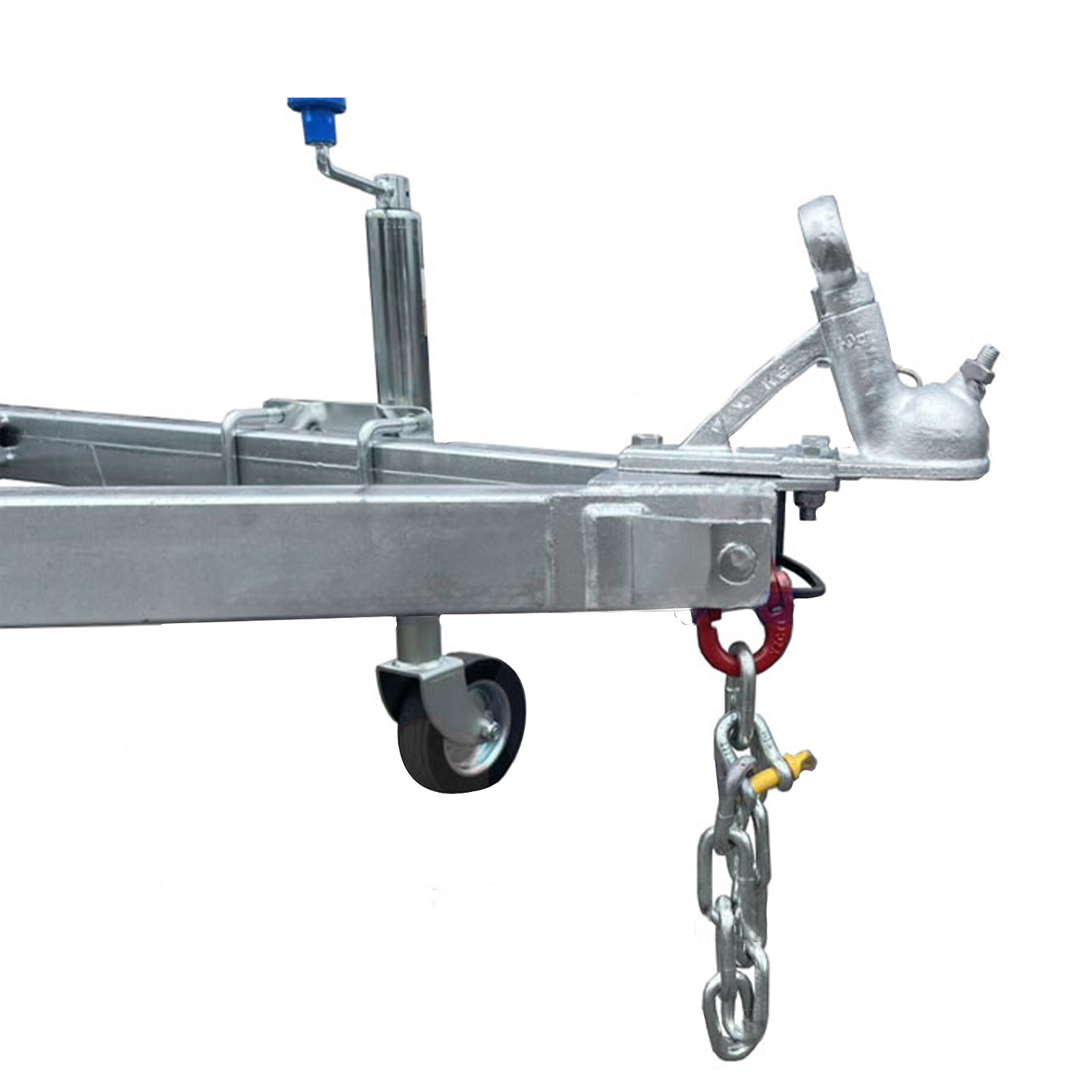

      • Coupling : 50mm 2000kg

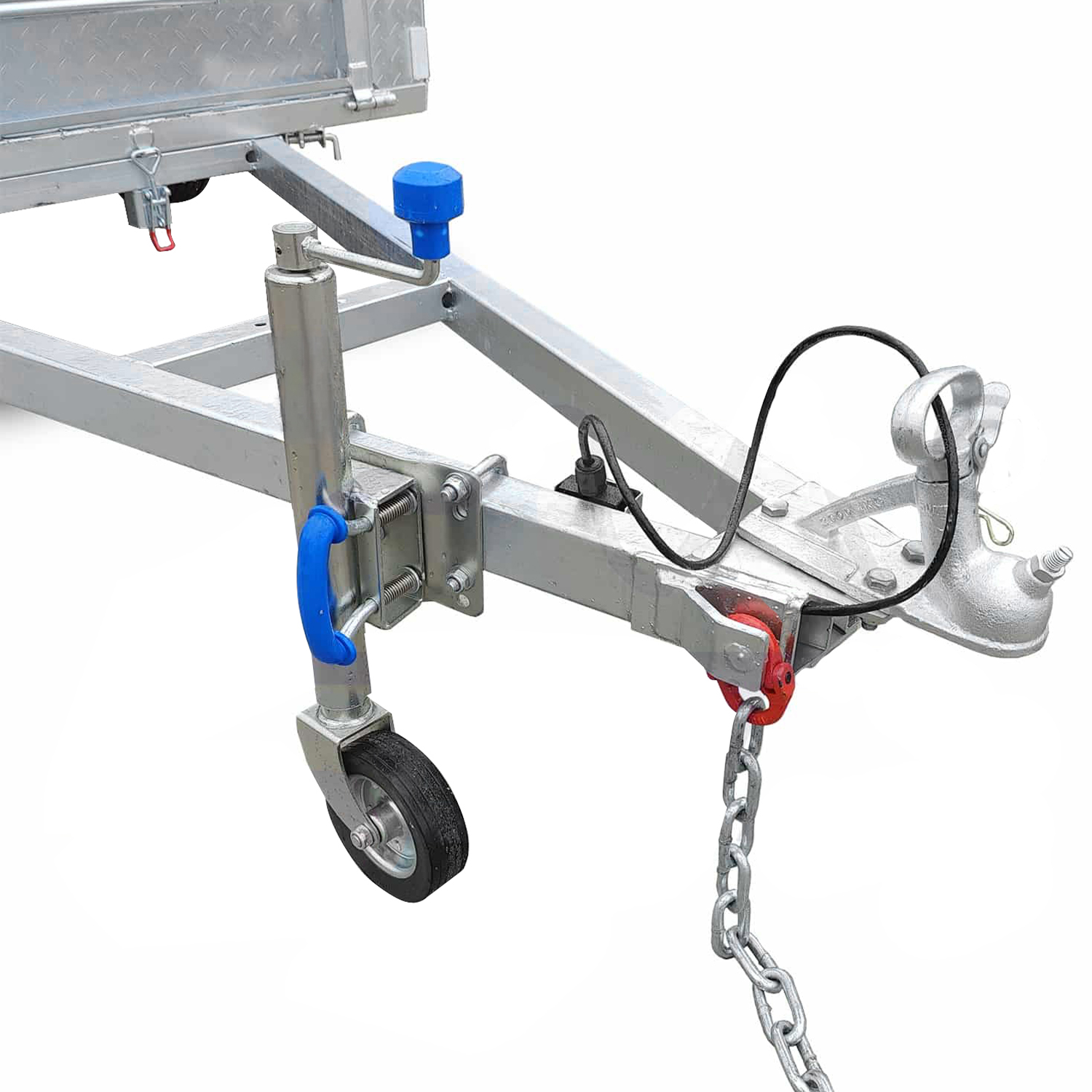

      • Jockey Wheel : 6” Swing up
      • Light : Tail Light, LED
      • Plug : 7 Pin, Flat/ Small Round/ Big Round
